| Quantity: | |
|---|---|
| Frequency | 50Hz | 60Hz |
| Voltage-Phases*1 | 400V/ 3Phases | 220V/ 3Phases |
| Power Factor | 0.8 | 0.8 |
| Standby Power(ESP)*2 | 1100kVA/880kW | N/A |
| Prime Power(PRP)*3 | 1000kVA/800kW | N/A |
| Continuous Power(COP)*4 | N/A | N/A |
| Max Current | 1588Amps | 2889Amps |

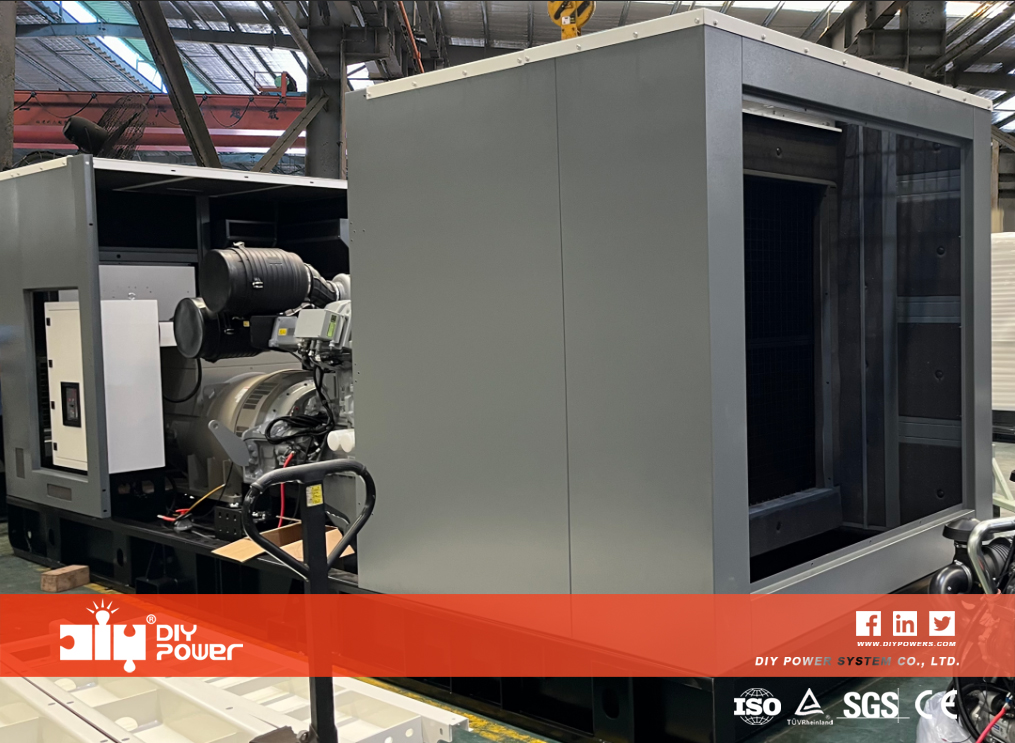

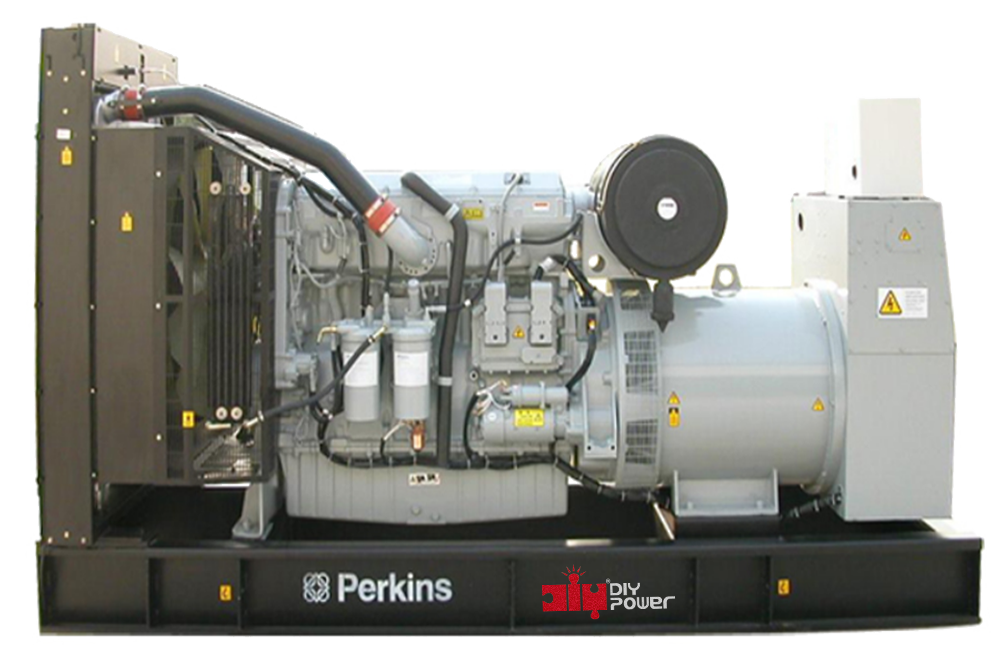

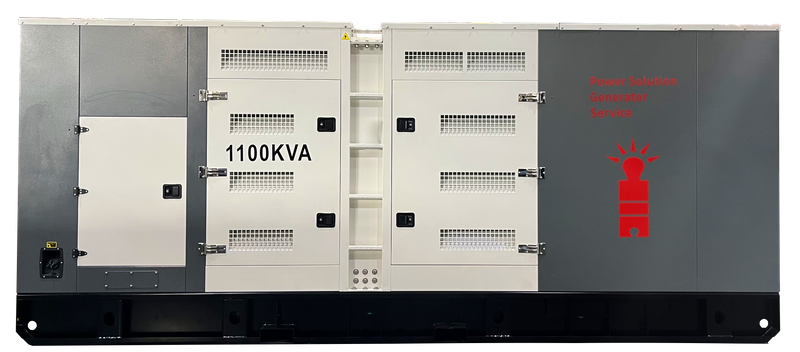

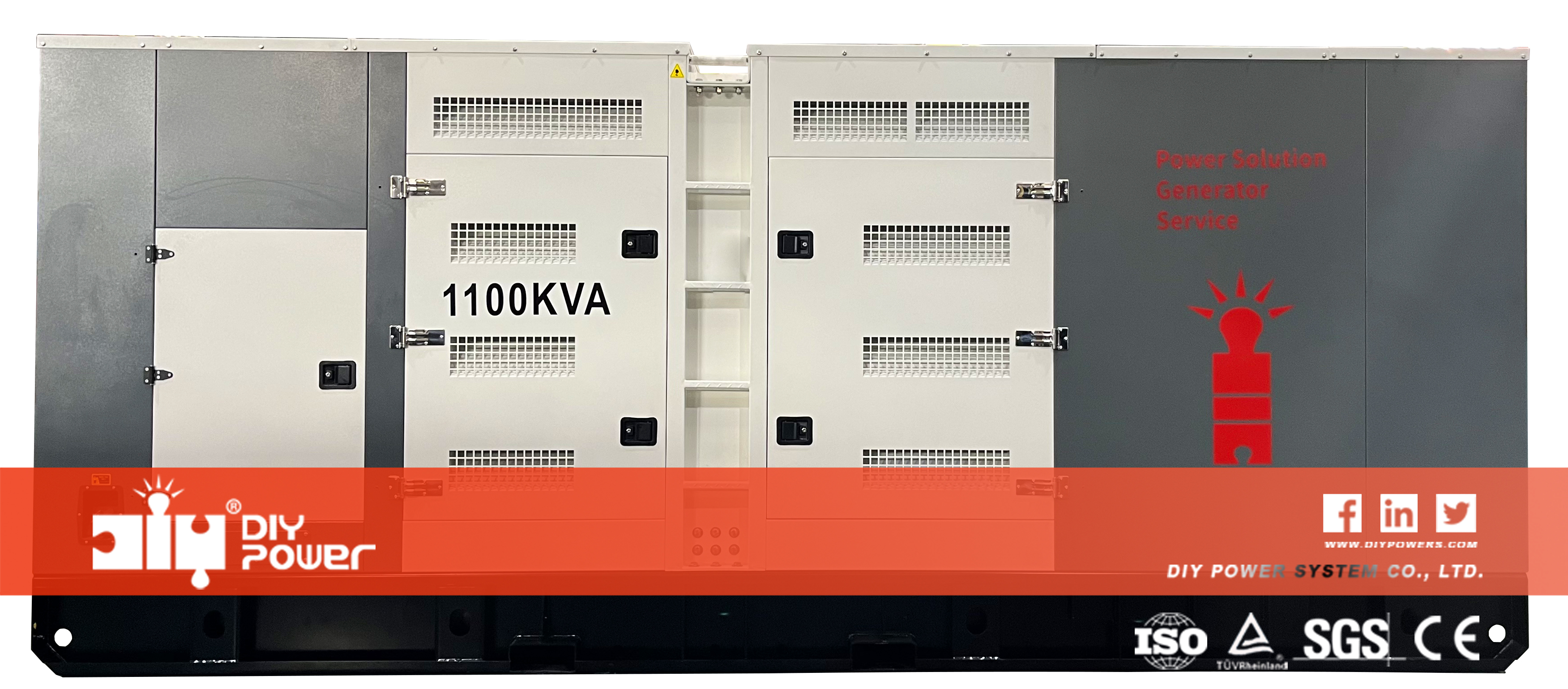

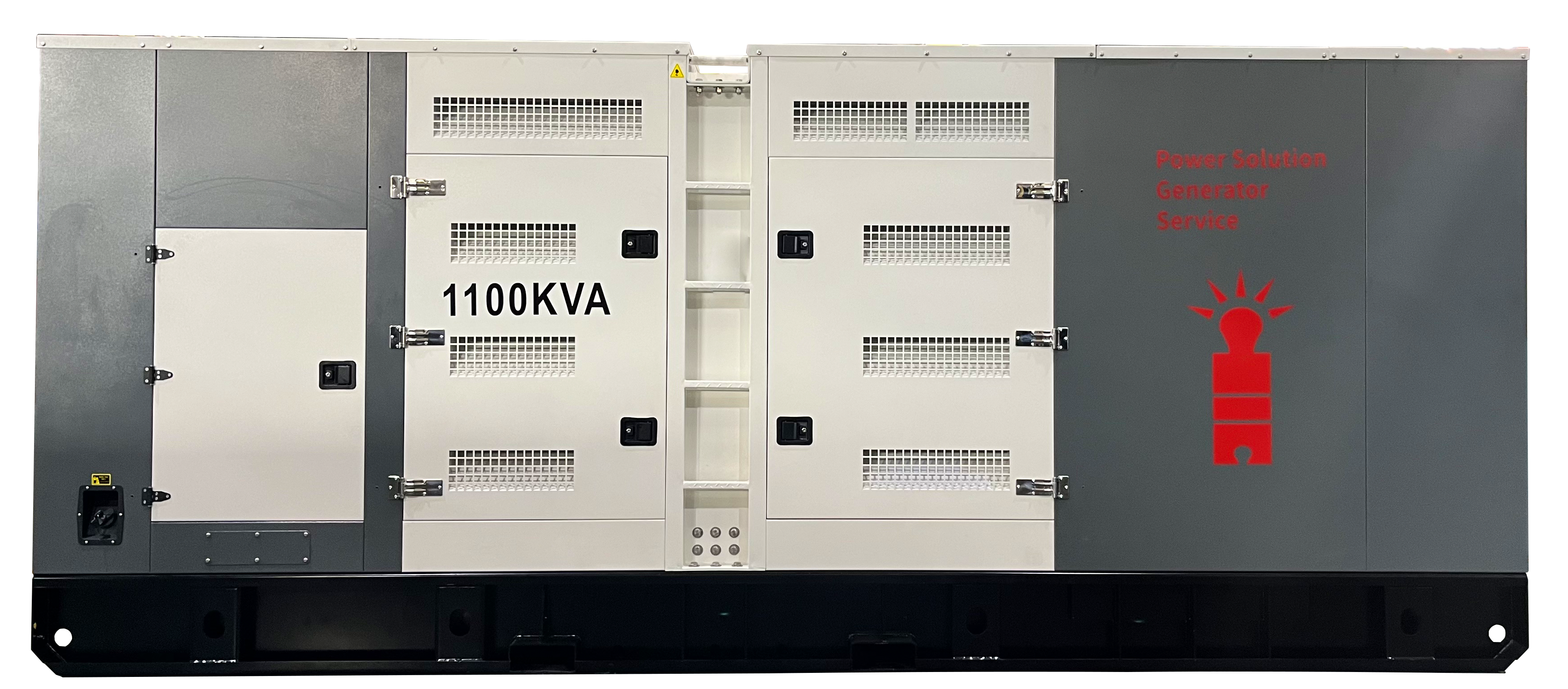

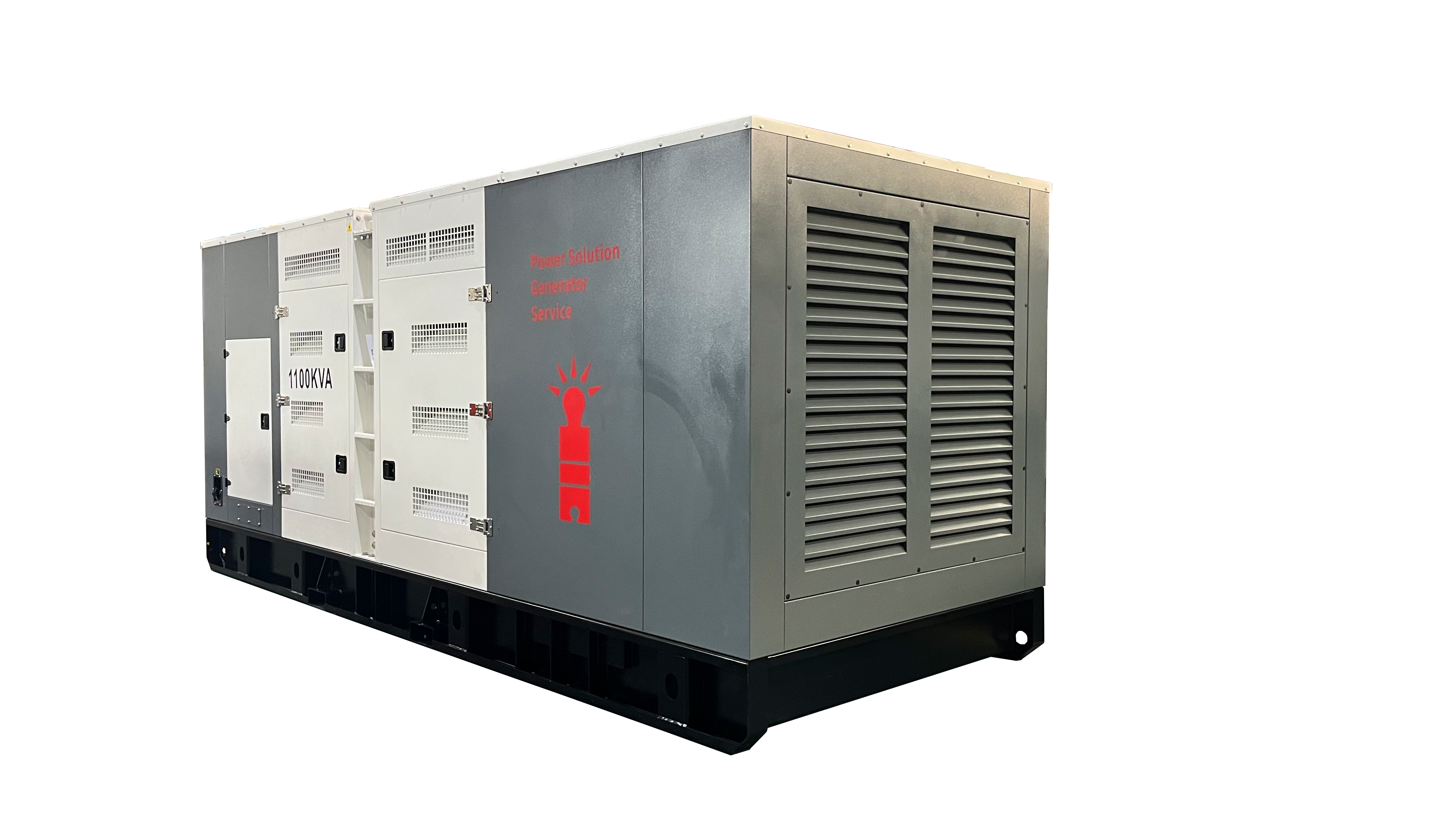

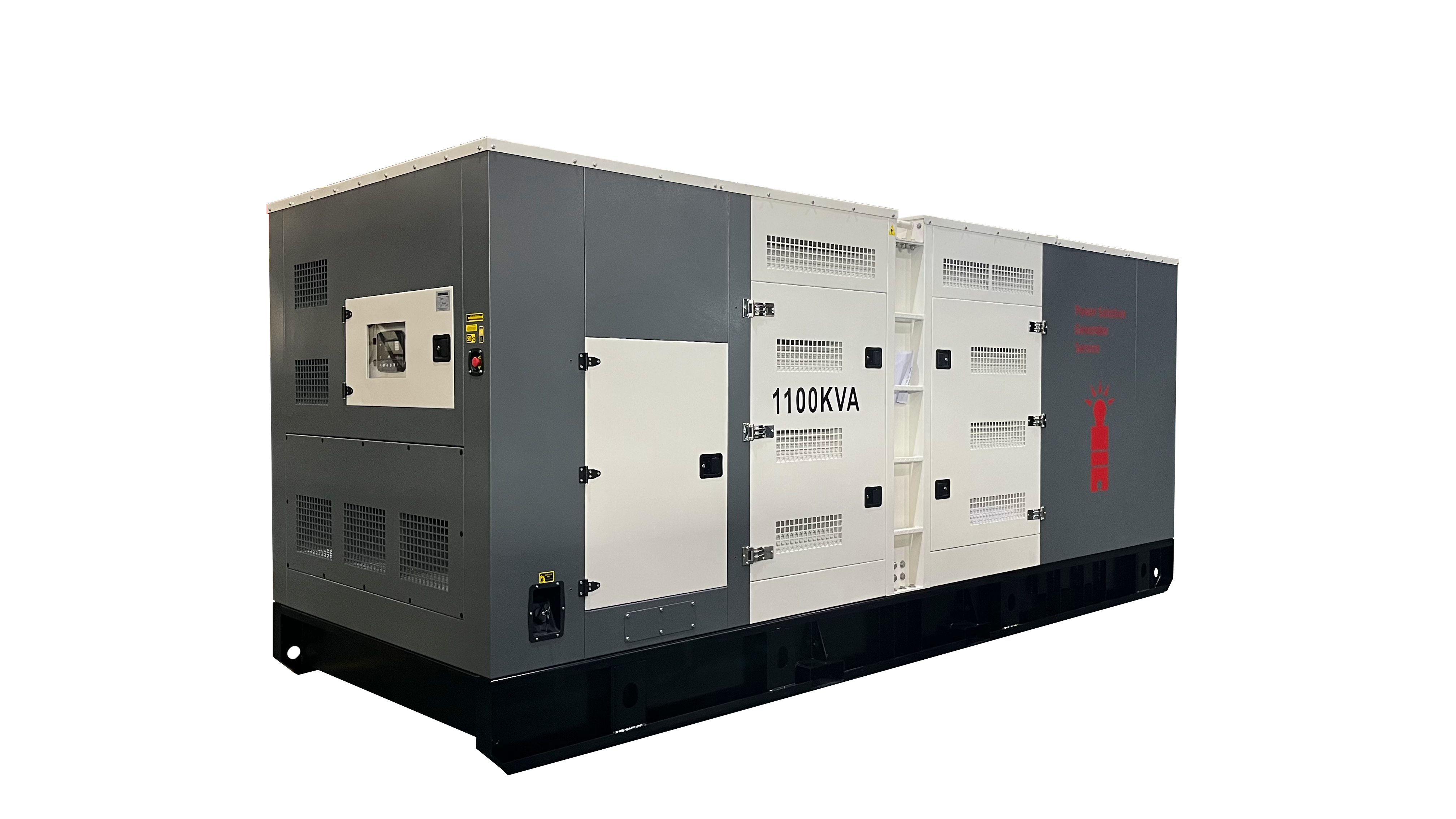

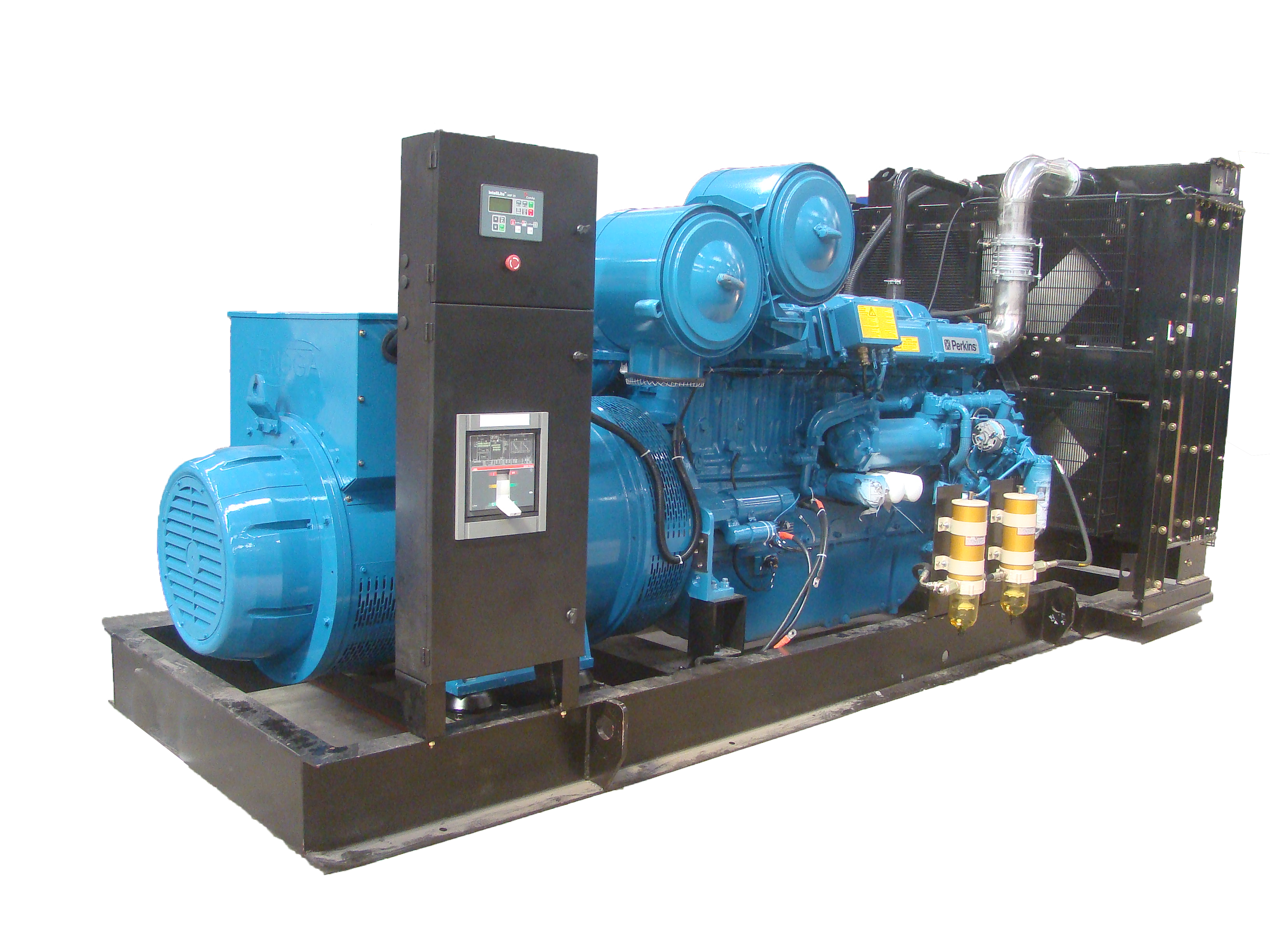

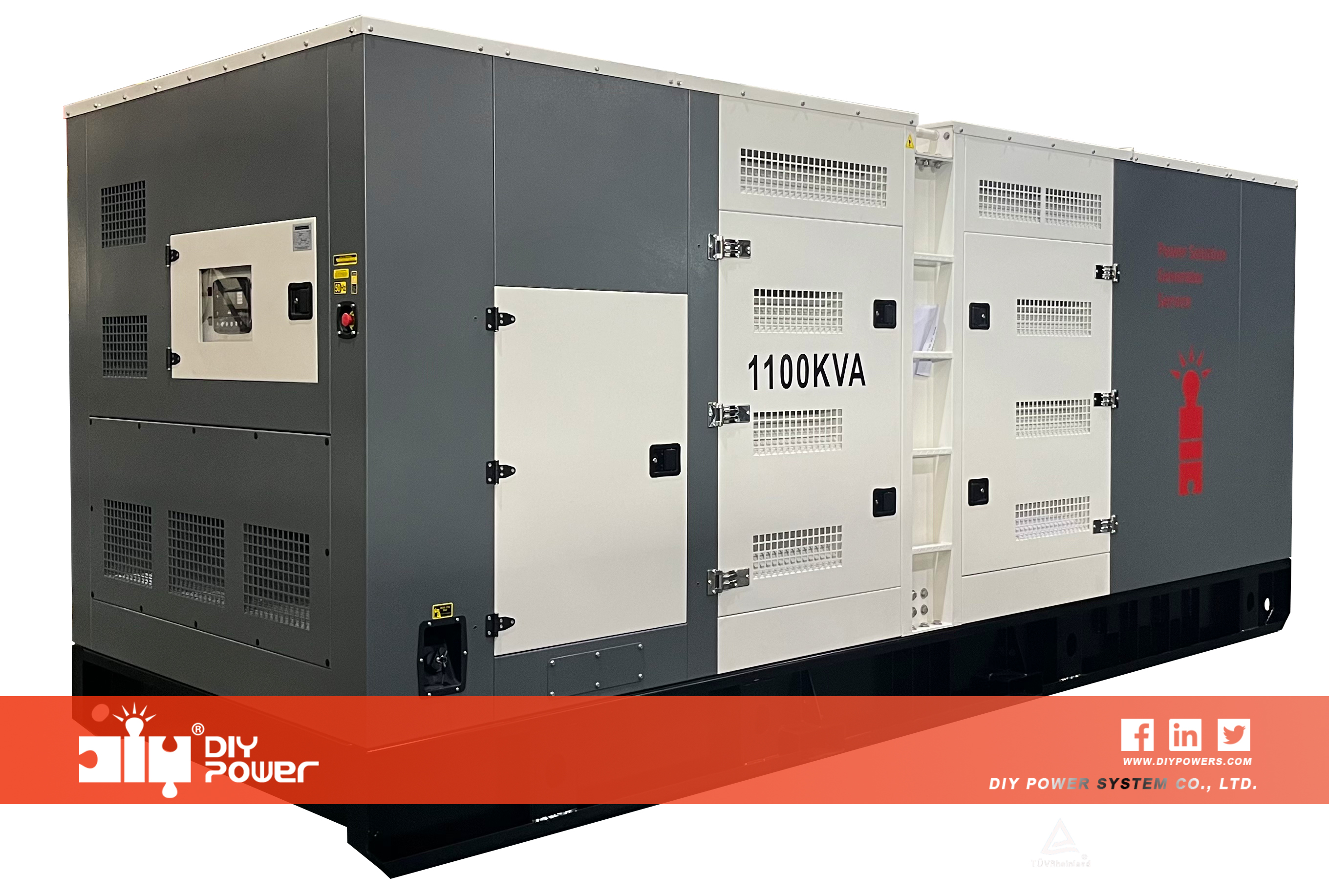

| Structure Type | Open Frame | Soundproof Canopy |
| Dimension L*W*H (mm) | 4700*21000*2370mm | 5900*2200*2500mm |
| Weight (kgs) | 8700kgs | 9765kgs |
| Sound Pressure Level: dB(A) | 110dB(A)/7meter @ 75%Load | 100dB(A)/7meter @ 75%Load |
| Fuel Tank Capacity (Litres) | 0L | 1000L |
| Automatic Run Time | 6 Hours @ 75% Load, 8 Hours @ 100% Load | |

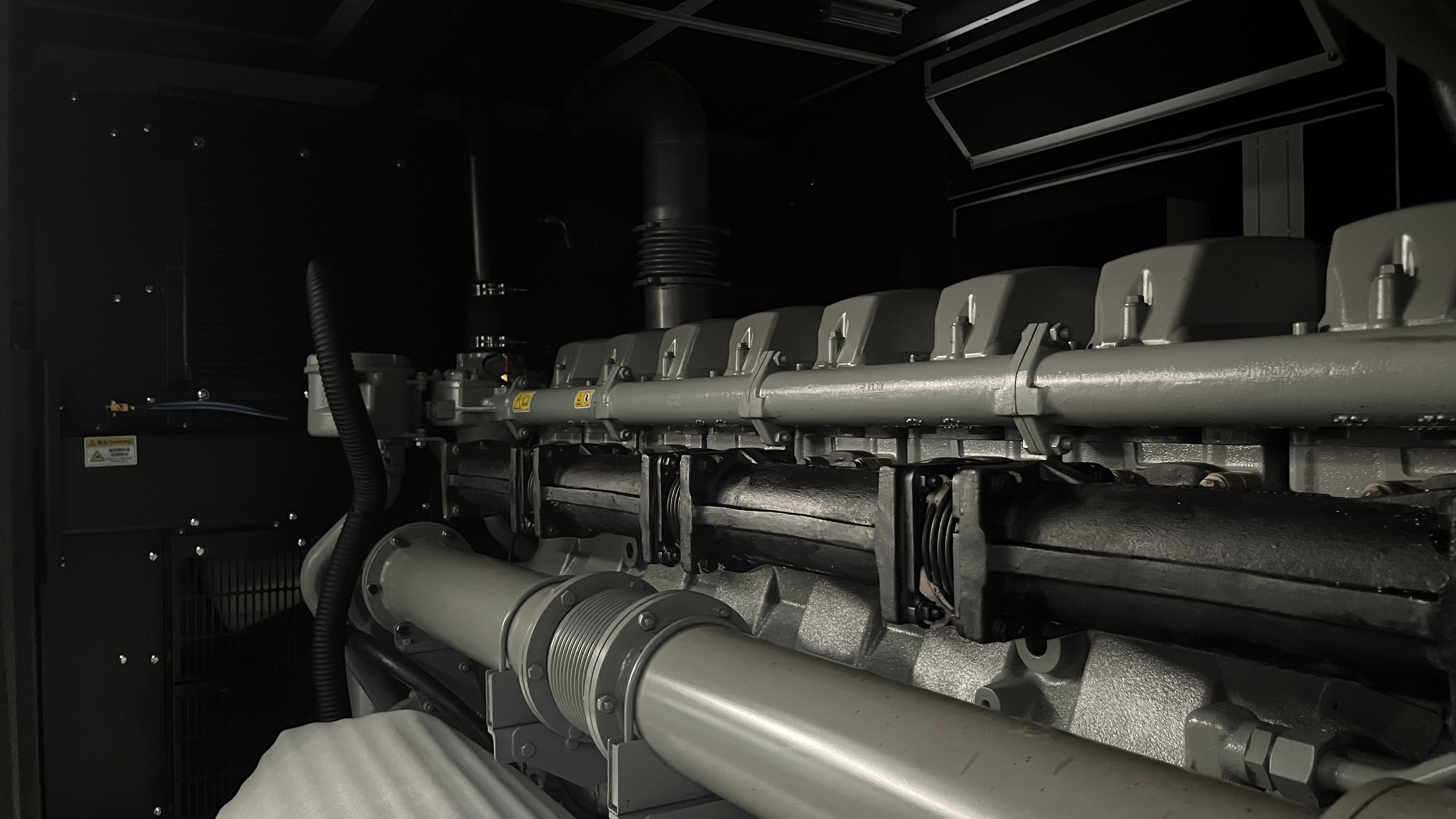

| Engine Brand(Manufacturer) | Perkins | |
| Engine Model | 4008ATG2A | |
| Aspiration Type | Turbocharged and air-to-air charge cooled | |
| Engine Type | 4-Stroke Diesel | |
| Number of cylinders | 8 cylinders in Line | |
| Bore and Stroke | 160*190 mm | |
| Displacement | 30.561 L | |
| Compression Ratio | 13.6:1 | |
| Fuel Injection System | Direct fuel injection system | |
| Engine Emission: | China State II | |
| Starting System | Cranking Motor-24V | |
| Speed Governor System | Electronic Governor to ISO 8528-5 Class G2 | |
| Speed | 1500RPM | 1800RPM |
| Gross Engine Standby Power | 985kW | N/A |
| Gross Engine Prime Power | 899kW | N/A |
| Gross Engine Continuous Power | 719kW | N/A |
| Fuel Consumption@Stdby Power | 209g/kW.h | N/A |
| Fuel Consumption@Prime Power | 206g/kW.h | N/A |
| Fuel Consumption@75% Power | 206g/kW.h | N/A |
| Alternator Brand(Manufacturer) | Stamford | |
| Alternator Model | S6L1D-E41 | |
| Power Ratings (PF=0.8) | 50Hz at 400V*5 | 60Hz at 4400V*6 |
| Continuous Power (H:125/40°C) | 1050kVA/840kW | 1200kVA/960kW |
| Standby Power (H:163/27°C) | 1125kVA/900kW | 1300kVA/1040kW |
| Poles Numbers | 4 | |
| Winding Leads | 6/12 | |
| Connection Type | Y (Star) | |
| Winding Pitch | 2/3 | |
| Insulation Class | H | |
| IP Class(Protection) | IP23 | |
| Waveform: NEMA = TIF | < 50 | |
| Waveform : I.E.C. : THF | < 2 % | |
| AVR Type | MX341 (Standard) | MX321 (Optional) |
| AVR Voltage Regulation | ± 1 % | ± 0.5 % |
| Excitation System | PMG | PMG (Optional) |
| Short-circuit Current | 2.7 In: 10 seconds | |

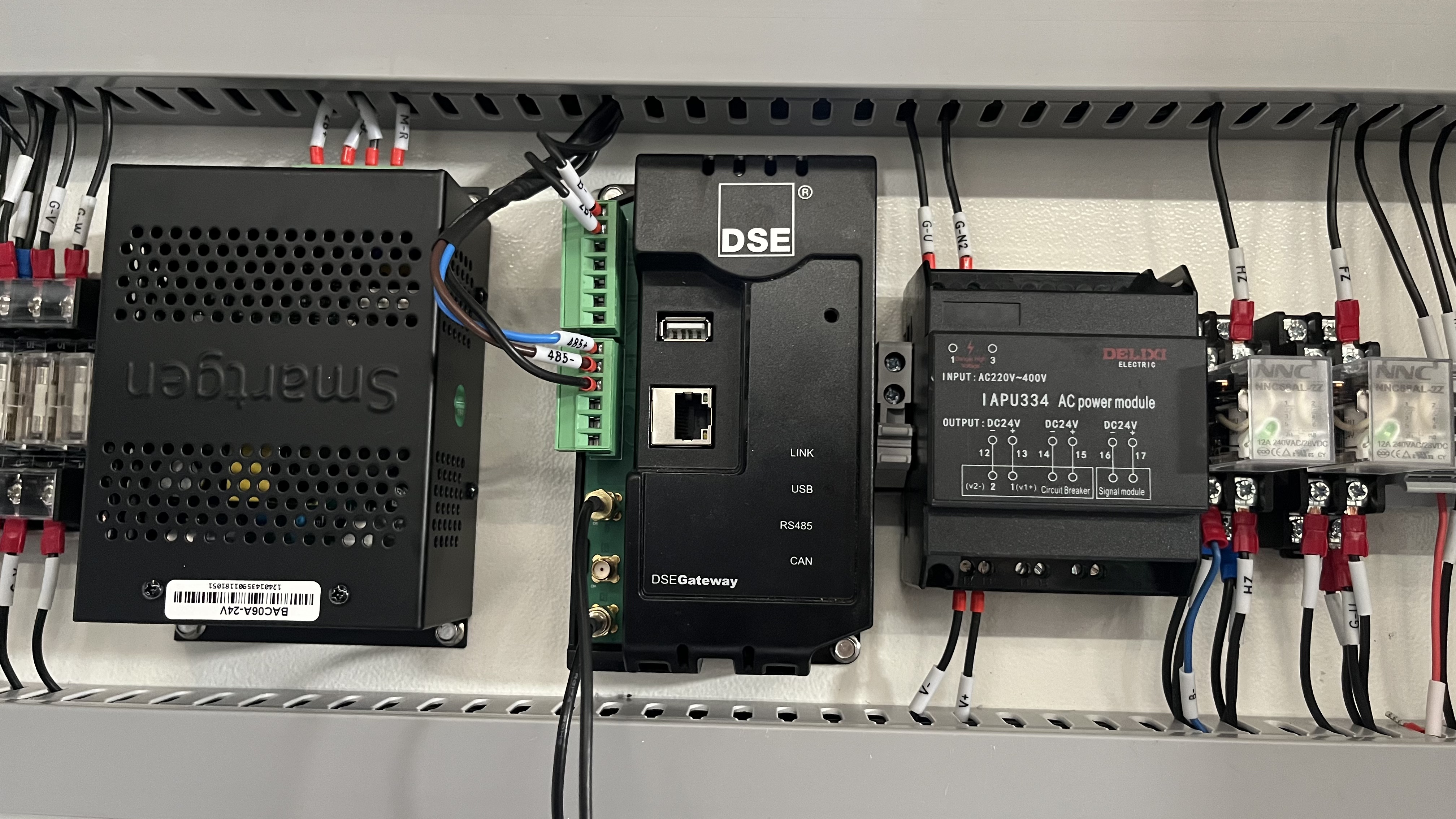

| Control System | Auto-Start 1001 | AMF 2001 |
| Generator Voltages | ● | ● |
| Generator Currents | ● | ● |
| Generator Frequency | ● | ● |
| Generator Apparent power (Kva) | ● | ● |
| Generator Active power (Kw) | ● | ● |
| Generator Reactive power (kVAr) | ● | ● |
| Generator Power factor | ● | ● |
| Engine Speed RPM | ● | ● |
| Engine Coolant temperature | ● | ● |
| Engine Oil pressure | ● | ● |
| Fuel level (%) | ● | ● |
| Battery voltage | ● | ● |
| Battery charge alternator voltage | ● | ● |
| High/Low Voltage Protection | ● | ● |
| High/Low Frequency Protection | ● | ● |
| Over Load Protection | ● | ● |
| Short-circuit Proteciion | ● | ● |
| Over Speed Protection | ● | ● |
| High Coolant Temp. Protection | ● | ● |
| Low Oil Pressure Protection | ● | ● |
| High/Low Battery Voltage Protection | ● | ● |
| Total Running Hours Counter | ● | ● |
| Total Starting Times Counter | ● | ● |
| Total Power kWh | ● | ● |
| Total Power kWArh | ● | ● |
| Cummunications by RS232/485 | ● | ● |
| Remote Monitor by PC Software | ● | ● |
| Remote Start | ● | ● |
| Auto Mains Failure Start | ● | |
| Mains Voltages | ● | |
| Mains Frequency | ● |
