Diesel Generator Supplier & Manufacturer for Industrial Power

DIYPOWER is a professional diesel generator supplier and manufacturer, providing reliable power solutions for industrial, commercial, and backup applications.
We support OEM & ODM services, flexible power ranges, and bulk orders to meet the needs of distributors, contractors, and global buyers.

What Is a Diesel Generator

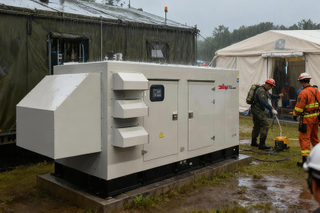

A diesel generator set, commonly referred to as a diesel genset, is a combination of a diesel engine and an electric generator (alternator) used to generate electrical energy.

It serves as a primary or backup power source in residential, commercial, industrial, and remote applications where grid electricity is unavailable, unreliable, or insufficient.

Main components

A diesel generator set is a self-contained power generation system that converts mechanical energy—produced by the combustion of diesel fuel in a compression-ignition internal combustion engine—into electrical energy through electromagnetic induction in an alternator. The complete unit typically includes:

A diesel engine (prime power) with a fuel system, a cooling and exhaust system and a lubrication system

A radiator to cooling the engine, filled with cooling water

An alternator (AC generator)

A control panel including control module, usually also with a battery charger

A main assembly frame or skid, usually as a base fuel tank

High Reliability & Stability

Low Fuel Consumption

Long Service Life

Fast Response for Power Backup

Suitable for heavy-duty and continuous operation

Diesel Generator Applications

Case Studies

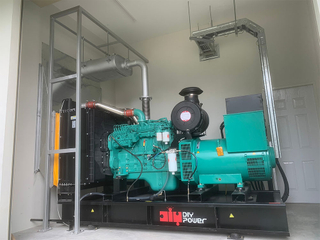

Backup power source 1-Generator
2022.01.02

Diesel generator sets are widely used as backup power source globally. 1.Fast startgenerally only takes a few seconds to start, it can be fully loaded within 1 minute in the starting state, and about 5-10 minutes in the normal working state.2.Short shutdown process The shutdown process of the diesel

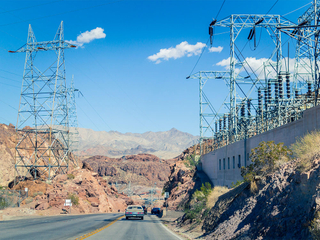

Medium and high voltage power distribution equipment
2022.01.02

Electric power begins at a generating station, where the potential difference can be as high as 33,000 volts. High-voltage DC is advantageous for isolating alternating-current systems or controlling the quantity of electricity transmitted.From the generating station it goes to the generating station

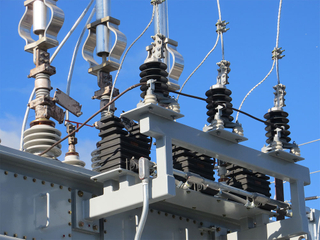

Voltage transformer
2022.01.02

Transformers are most commonly used for increasing low AC voltages at high current (a step-up transformer) or decreasing high AC voltages at low current (a step-down transformer) in electric power applications, and for coupling the stages of signal-processing circuits. Transformers can also be used

Customize Service

Explosion-proof Genset
2024.11.04

ATEX Certified Explosion Protected Diesel Generator Set The high standards required by the offshore industry often require the need for ATEX certified systems for use in hazardous area zones 1 and 2. These generators require engineering beyond the specification of normal systems.DIY POWER generators

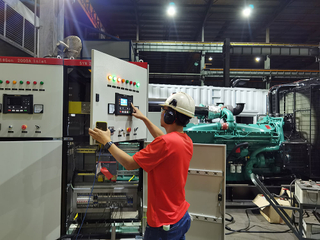

Generator Commission service
2022.01.02

In some areas, the generator power station is the main power source, it undertakes the important task of power generation and distribution, and the operation quality of the power station is directly related to the vitality of the area people. The power plant must be a reliable power supply, power gr
Backup power source 2- UPS
2022.01.02

An uninterruptible power supply or uninterruptible power source (UPS) is an electrical apparatus that provides emergency power to a load when the input power source or mains power fails. A UPS differs from an auxiliary or emergency power system or standby generator in that it will provide near-insta

Power Applications

Rail Transit (Airport)
2024.11.04

In major airports, the power supply system is the guarantee for the operation of various equipment and systems. Whether it is communication navigation, daily lighting or other equipment operation, it must be based on power supply. Therefore, the working condition and reliability of the airport power

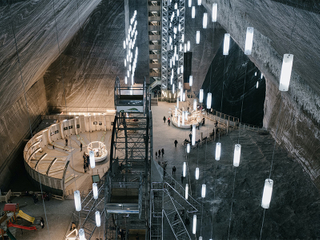

Mining
2022.01.06

Mining is a long-term project, Most mines are located in remote locations where there is no access to the public electricity grid, which makes it difficult to carry out feasibility studies. Generator set can provide the stable power supply and lighting you need, and DIY Power could monitor the gener
Construction
2022.01.02

It is unlikely to have electricity on construction sites. If we are not in a residential area, there would be difficult to have any access to electricity.The design and manufacture of DIY power's generators meet the requirements of your construction site. They can be easily, sturdy, safe and easy to

Power Solutions

General Introduction of Business Scope
2024.11.04

We are a comprehensive power company focusing on generator sets, committed to power generation, substation, transmission, distribution, backup power and other power fields, engaged in the production, marketing, construction, installation, commissioning and after-sales serve of power equipment.We are

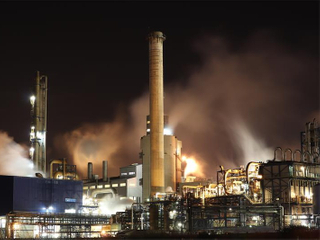

Introduction To The Power Station
2022.01.02

A power plant, also known as a power station, is a factory that converts various primary energy contained in nature into electrical energy (secondary energy), in order to supply power to the electrical grid for society's electrical needs.There are various types of power plants we main in：1. Diesel G

Product Specifications

Power Range	7 - 3900kW
Engine Brands	Cummins, Perkins, MTU, Mitsubishi, SME, Baudouin, Deutz, Doosan, Hyundai, SDEC, Yuchai, Caterpillar, FG Wilson, KOFO, YTO, Yanmar, Yangdong
Alternator Options	Stamford, Leroy-Somer, FirstAll, Kwise, Mecc-Alte, Marathon
Control System
ComAP:	MRS16, AMF8, AMF9, AMF20, AMF25, IGNT, ICNT, IG200, IG500
DeepSea:	DSE4610, DSE4620, DSE6110, DSE6120, DSE7320, DSE7420, DSE8610, DSE8620, DSE8660
DEIF:	SGC110, SGC410, AGC150, AGC-4
Optional Configurations
Type ：	Open, Silent, Container, Trailer
Color:
IP Class:	IP23, IP44, IP56 (Some Part)
Noise:	60dBA, 65dBA, 70dBA, 75dBA @ 1meter, @7meter
Function:	AMF, ATS, PLC, HMI
Monitoring and Startup:	Remote start and remote monitoring by RS485/RS232/WIFI/Ethernet/SIM card

Get Price & Specifications

How to Choose the Right Diesel Generator

Contact Us

Load Calculation Method

Calculate the total based on the maximum power required for the operation of the equipment. If it is a device with an electric motor, the start-up sequence of the equipment and the maximum power (current) required during start-up need to be calculated.

Diesel generator sets generally have the best fuel consumption and optimal equipment performance when the load is around 75%. So we usually calculate the total load and then divide it by 0.75 to finally obtain the main power of the diesel generator set we need.

Prime Power vs Standby Power

Load Calculation Method

PRIME POWER RATING is appliceble for supplying electric power in lieu of commercially purchased power. Prime Power applications must be in the form of one of the following two categories:

UNLIMITED TIME RUNNING PRIME POWER
LIMITED TIME RUNNING PRIME POWER

STANDBY POWER RATING is applicable for supplying emergency power for the duration of the utility power outage. No overload capability is available for this rating. Under no condition is an engine allowed to operate in parallel with the public utility at he Standby Power rating

Noise Level & Fuel Tank Capacity

Load Calculation Method

Noise:
60dba / 65dBA / 70dBA / 75dBA / 80dBA

@ 1meter / @ 7meter

@ 0% Load / @75% Load / @ 100% Load
Fuel Tank : Without / 8 / 10 / 12 / 24(daily running) / 48 / 72 hours running.

Genset Type

Load Calculation Method

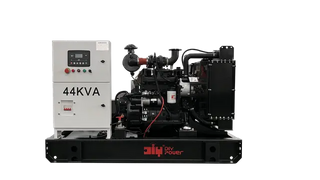

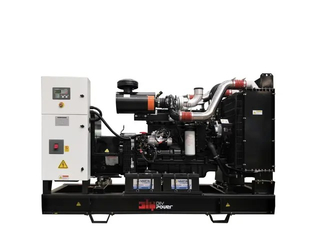

Open-Type

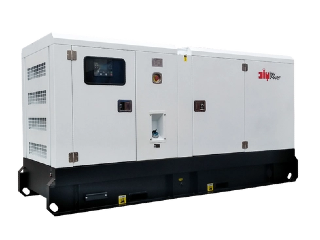

Silent-Type

Container Type

Trailer-Type

Application

Load Calculation Method

Single
Paralleling
Synchronize

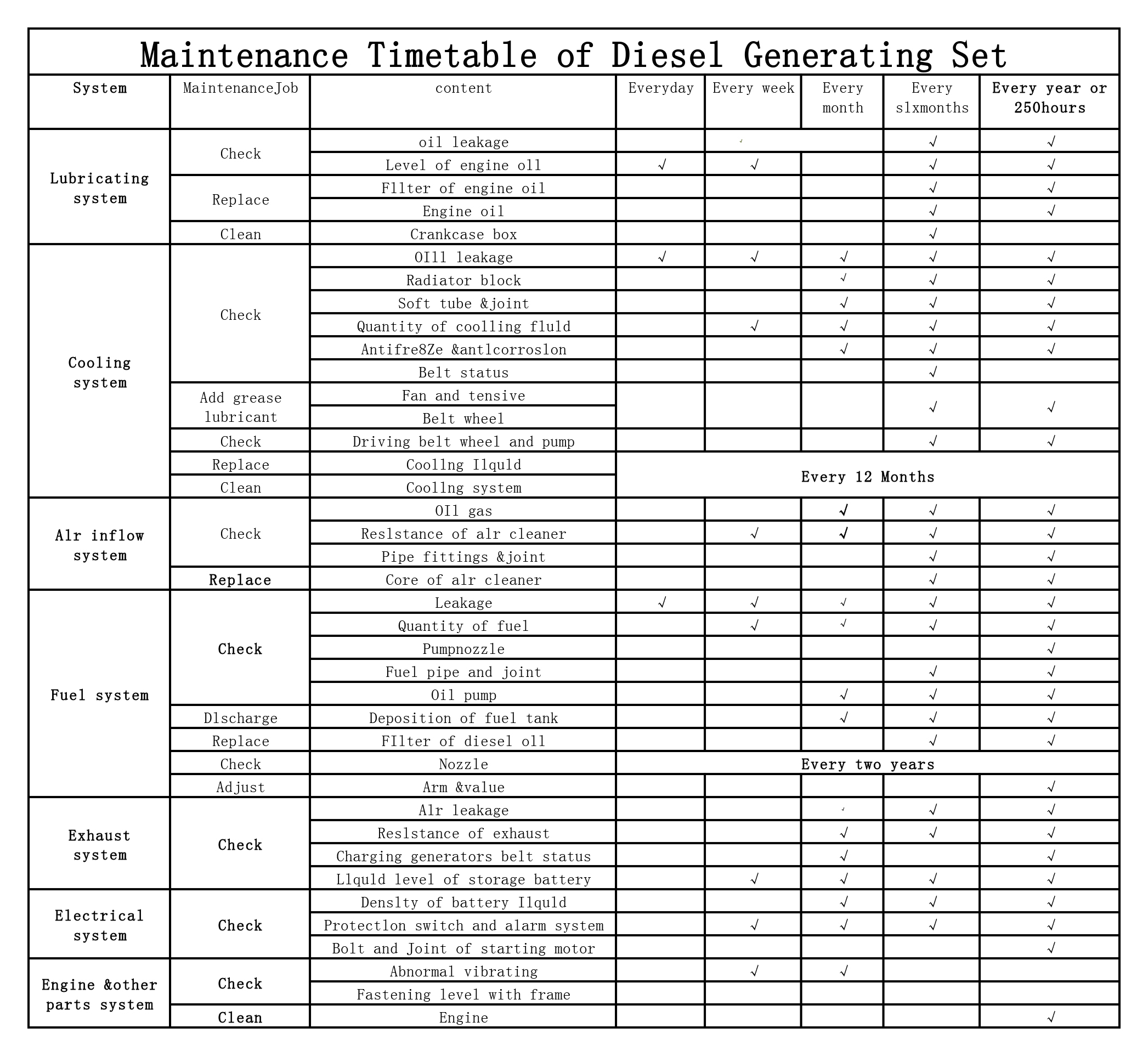

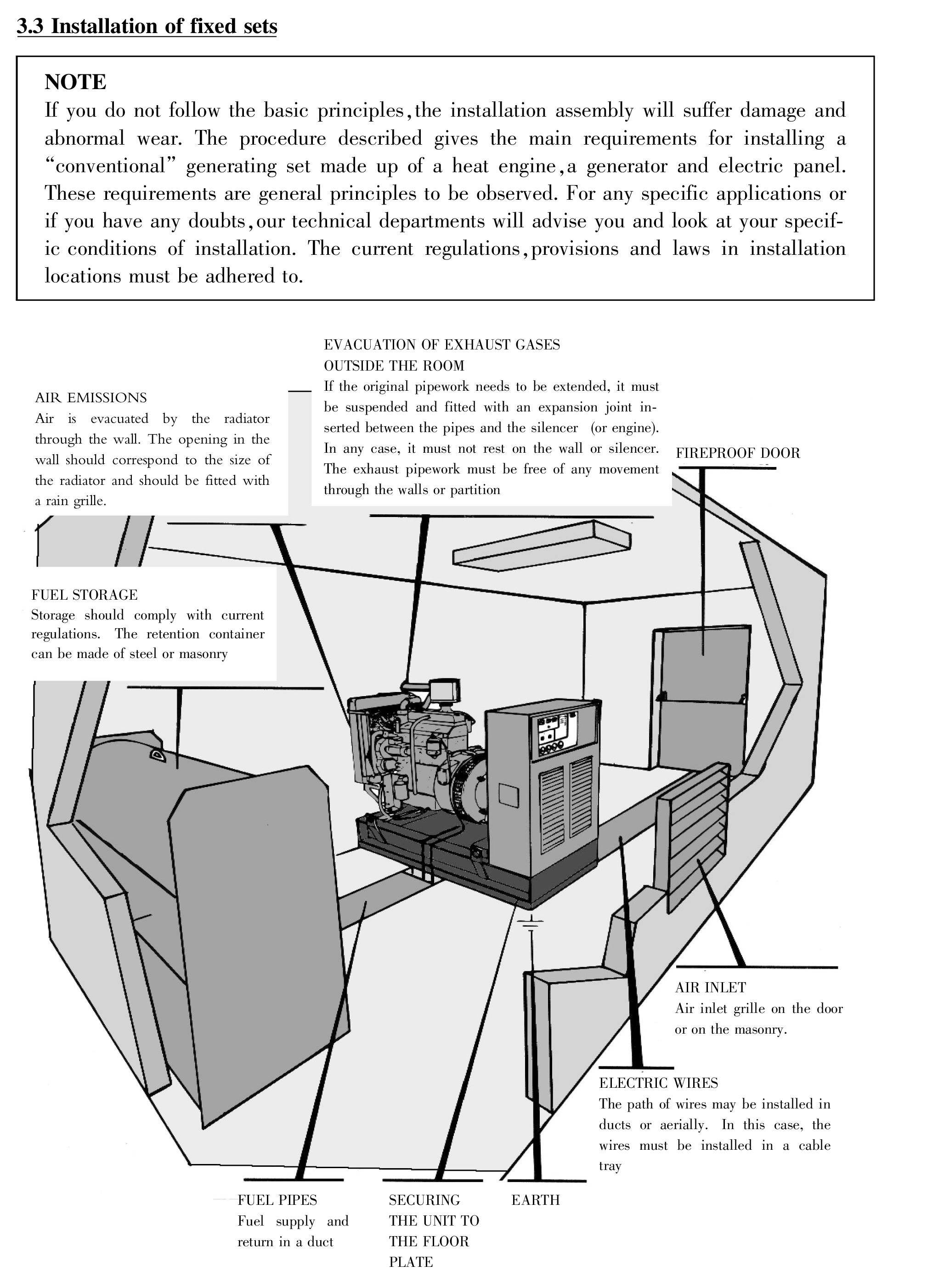

Installation & Maintenance Guide
