Hybrid Energy Solutions Supplier for Reliable Power Systems

DIYPOWER provides hybrid energy systems that integrate diesel generators, renewable energy, and energy storage to deliver stable, efficient, and cost-effective power solutions.
Our systems are designed for industrial, commercial, and off-grid applications with flexible configuration and supplier-level support.

What Is a Hybrid Energy &Hybrid Power System

A Hybrid Power Energy System is a system that combines two or more different types of energy generation methods to improve energy efficiency, reliability, and stability. A common combination is diesel generator sets and energy storage batteries, which can work separately or together to provide stable power output according to demand.

In a hybrid power energy system consisting of diesel generator sets and energy storage batteries, diesel generators are mainly used for supplying power during high load periods or charging the battery when its charge is insufficient; energy storage batteries, on the other hand, store excess electrical energy during low load times and release it during peak hours to balance the overall system's energy consumption. The system typically includes an intelligent control system to manage the flow and distribution of energy among different components, ensuring efficient and stable operation of the system.

Diesel Generator + Battery Energy Storage System (BESS)

It is suitable for areas with weak or no power grid. Diesel engines provide basic power, and batteries smooth out load fluctuations and fill peaks and valleys

Photovoltaic (PV) Solar + Battery Energy Storage

The most common form of hybrid renewable energy is photovoltaic power generation for electricity storage during the day and battery power supply at night or on cloudy days.

Wind + Solar PV + Battery Storage

Wind-solar complementarity takes advantage of the complementary nature of wind and solar energy in terms of time and seasons to enhance the stability of the system's power supply.

Solar PV + Diesel Generator + Battery Storage

It is widely applied in remote islands, mining areas, communication base stations and other scenarios, taking into account both renewability and backup support.

Micro-hydro + Solar PV + Battery Storage

It is suitable for mountainous areas with stable small rivers. Hydropower provides the base load, and photovoltaic power supplements the peak daytime electricity consumption.

Fuel Cell + Battery Energy Storage

Fuel cells (such as hydrogen fuel cells) serve as a continuous power source, and the battery responds to the instantaneous high power demand.

Natural Gas Generator + Battery Storage

A cleaner fossil energy option than diesel, often used in microgrids or emergency backup power systems.

Biomass Power + Solar/Wind

Generating electricity from agricultural or forestry waste and combining it with intermittent renewable energy sources can achieve continuous energy supply.

Why Hybrid Power Key Benefits

Improved Energy Efficiency

Diesel generators operate inefficiently under partial loads. By integrating batteries, excess electricity can be stored during low-demand periods and discharged during peak demand, allowing the diesel generator to run consistently at its optimal load.

Reduced Fuel Consumption and Operating Costs

Battery energy storage helps “shave peaks” and “fill valleys” in power demand, minimizing frequent starts/stops and inefficient operation of the diesel generator—leading to significant fuel savings and lower maintenance costs.

Lower Environmental Impact and Emissions

Optimized diesel operation reduces exhaust emissions. When combined with renewable sources (e.g., solar or wind), batteries increase the share of clean energy, further cutting carbon footprint.

Enhanced Power Reliability and Quality

Batteries provide instantaneous power support during sudden load changes or short-term outages, stabilizing voltage and frequency, and improving overall power continuity and quality.

Cost savings

By means of hybrid energy, the initial investment cost can be effectively saved (by reducing the power of the diesel generator set to save the investment cost),

As well as the later operating cost (optimizing the efficiency of the diesel engine to keep it running at the best performance and achieving the effect of cost savings by reducing diesel consumption).

Application Scenarios of Hybrid Power

The value of diesel-battery hybrid systems lies not just in power supply, but in dynamic regulation, system stability, economic optimization, and environmental benefits—demonstrating superior control over when to generate, how to allocate power, and how to ensure reliability.

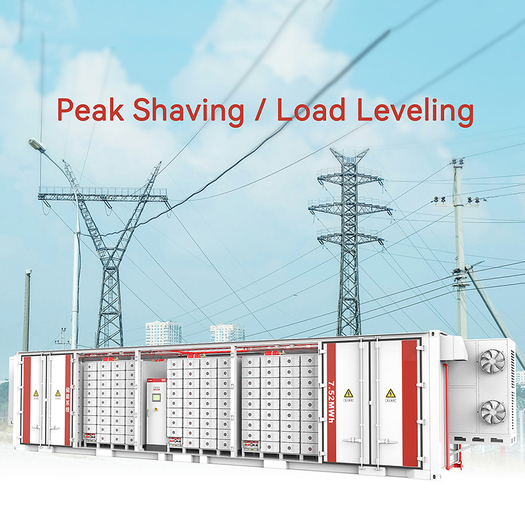

Peak Shaving / Load Leveling

During off-peak electricity consumption periods, the diesel engine charges the battery. During peak hours, the battery discharges to replenish power, enabling the diesel engine to operate within a stable and efficient range.

Mitigating Sudden Load Changes

When large equipment is suddenly started (such as water pumps, compressors) or suddenly shut down, batteries can instantaneously provide or absorb power to prevent voltage drops or frequency fluctuations. At the same time, it reduces the capacity demand of the generator set and saves costs.

Black Start Capability

After a total blackout, the battery can power control systems and starter circuits to enable the diesel generator to restart without external grid support.

Generator Life Extension

Reduces generator cycling and avoids prolonged low-load operation (which causes wet stacking), extending engine life and cutting maintenance.

Renewable Integration Smoothing

When solar or wind is integrated, batteries smooth intermittent renewable output, reducing the need for diesel generator ramping and increasing renewable penetration.

Silent or Stealth Mode Operation

In nighttime operations or eco-sensitive zones, the diesel generator can be shut down, and power supplied silently from batteries—zero noise, zero emissions.

Uninterruptible Power Supply （UPS）Function

Acts as a short-term UPS during generator failure or maintenance, ensuring continuity for critical loads like servers or medical equipment.

Optimizing Multi-Generator Dispatch

In multi-generator setups, the battery handles minor load fluctuations, preventing unnecessary unit cycling and enabling efficient “N-1” operational strategies.

Microgrid Energy Management

Within smart microgrids, the hybrid system can respond to EMS commands for demand response, time-of-use arbitrage, or grid-support services.

System Features & Functions

Solution Features

Modular Integration, Flexible Configuration
One-Stop EMS Management and Control
Autonomous Operation, Real-Time Monitoring Data

Application Value

Ensure Power Supply Stability, Enhance Emergency Capability
Improve Grid Power Supply Reliability and Equipment Utilization
Increase Grid Flexibility and Energy Security
Support IoT, Cloud Platform
Bottom inlet and outlet cables design

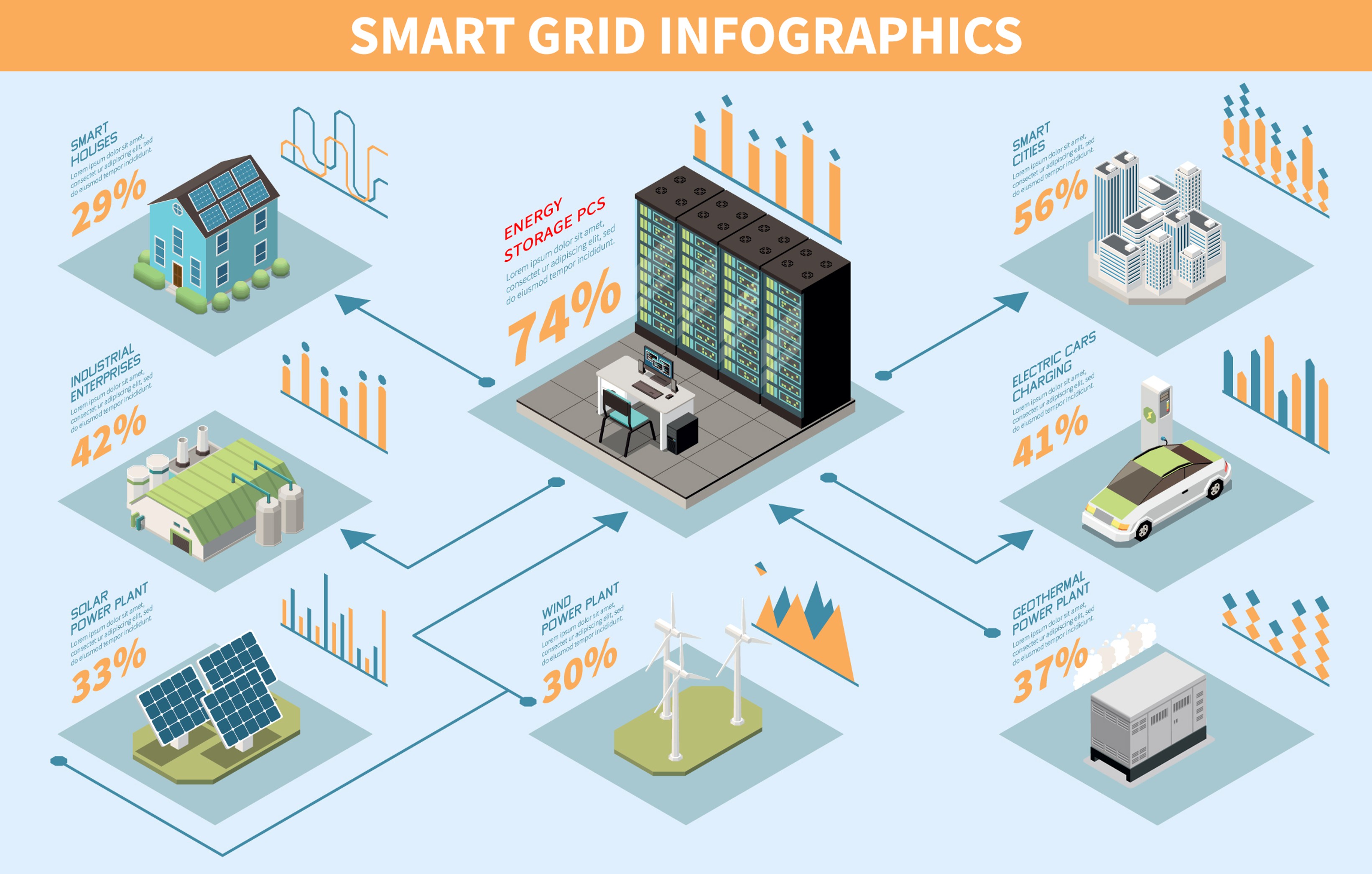

Smart Grid Infographics: Hybrid Energy & ESS at the Core

When do I need a hybrid energy system

Deploying a hybrid power system isn’t about adding more components—it’s a strategic decision based on load characteristics, local resources, reliability needs, and economic viability. The system delivers true value only when all four factors indicate that a single-source solution would be inefficient, costly, or unreliable.

Assessing Load Profile

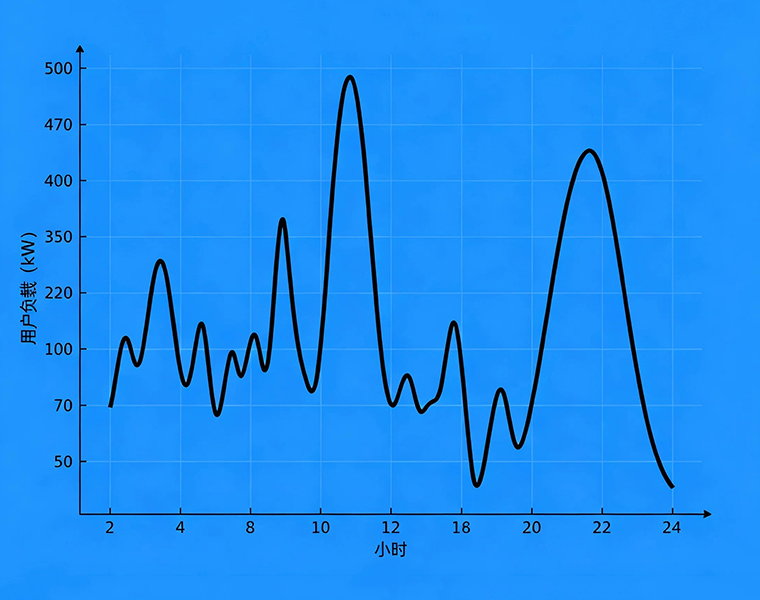

A hybrid system is needed when the user’s load profile shows high variability, significant peak-to-valley differences, sudden load changes, or strong daily/seasonal patterns. If load curve analysis (over 24 hours or a year) reveals that the diesel generator frequently operates at low load (<30%) or undergoes frequent start-stop cycles, integrating batteries for peak shaving, load leveling, and dynamic support becomes highly beneficial—improving both efficiency and stability.

High Renewable Penetration Ratio

When the site has abundant solar or wind resources, and the user aims to reduce diesel consumption, lower carbon emissions, or comply with green energy policies, a target renewable penetration ratio (e.g., 30%–80%) should be designed. However, high renewable penetration without energy storage can cause excessive generator cycling or instability. Therefore, high renewable integration must be paired with battery storage to ensure safe, economical, and reliable operation.

ROI & Payback Period Calculation

A hybrid system becomes economically justified when diesel fuel is expensive or costly to transport (e.g., islands, highlands, mines), or when grid connection is prohibitively expensive or impossible. Although upfront costs are higher, fuel savings, reduced maintenance, and extended generator life can yield a payback period of 3–7 years. With added incentives—such as government subsidies, carbon credits, or time-of-use arbitrage (in grid-tied cases)—the ROI improves further.

Big Storage Capacity & Long Autonomy

A hybrid system is essential when users need to power critical loads while the diesel generator is off (e.g., nighttime operation using solar-charged batteries or silent-mode emergencies), or when the system must provide several hours to days of off-grid autonomy (e.g., due to fuel supply disruptions or extreme weather). For example, to support a 20 kW critical load for 6 hours, a minimum of ~120 kWh of usable battery capacity is required (accounting for depth of discharge and round-trip efficiency).

Energy Storage Cabinet （BSS）Parameters

DIY-F265

AC-Side Parameters
Grid Voltage	400Vac (Three-phase Four-wire)
Rated AC Power	125kW
Rated AC Current	180A
Rated Grid Frequency	50/60Hz
Adjustable P.F. Range	-1 (Leading) to +1 (Lagging)
THDi (Rated Power)	< 3%
Output Method	Bottom wiring design
DC-Side Parameters
Module	LFP-76.8V-314Ah-24.1152kWh
Capacity	265.27kWh
Rated Voltage	845Vdc
Operating Voltage Range	726~937.2Vdc
Maximum Current	200A
System Parameters
Isolation Method	Non-isolated
Charge/Discharge Rate	0.5CP
System Life	8000 cycles @25°C, 95% DOD, ≥70% EOL
Communication Interface	RS485、CAN、LAN
Altitude	≤3500m (Derating above 2000m)
Operating Temperature	-20℃~ 50℃
Protection Level	IP55
Weight	2.2T
Dimensions (WDH)	106013602300mm
Certification	UL1973、UL9540A、IEC62619、UN38.3

DIY-F506

AC-Side Parameters
Grid Voltage	400Vac (Three-phase Four-wire)
Rated AC Power	125kW
Rated AC Current	180A
Rated Grid Frequency	50/60Hz
Adjustable P.F. Range	-1 (Leading) to +1 (Lagging)
THDi (Rated Power)	< 3%
Output Method	Bottom wiring design
DC-Side Parameters
Module	LFP-38.4V-628Ah-24.1152kWh
Capacity	506kWh
Rated Voltage	806.4Vdc
Operating Voltage Range	693~894.6Vdc
Maximum Current	200A
System Parameters
Isolation Method	Non-isolated
Charge/Discharge Rate	0.25CP
System Life	8000 cycles @25°C, 95% DOD, ≥70% EOL
Communication Interface	RS485、CAN、LAN
Altitude	≤3500m (Derating above 2000m)
Operating Temperature	-20℃~ 50℃
Protection Level	IP55
Weight	3.8T
Dimensions (WDH)	150013602400mm
Certification	UL1973、UL9540A、IEC62619、UN38.3

Case Studies & Reference Projects

Micro-grid system of

This microgrid system can provide stable and clean energy supply for over 170 local households. The system is equipped with 8 506kWh battery cabinets and a 1000kW photovoltaic system. The project covers an area of over 1,000 square meters, with an average daily power generation capacity of 6,448kwh, which can meet the energy demand throughout the day.

Hybrid Telecommunication Signal Tower

Here I would like to introduce you about D I Y POWER Hybrid Energy Solution by Generator Storage and Solar energy.
As you can see，when at morning 6 AM to 10 AM The sun arise, Solar panels start generating electricity. During this process, because the power provided by solar energy is not enough to support the work of the signal tower, additional power supply from the storage battery is required.

Hybrid Telecommunication Signal Tower
Here I would like to introduce you about D I Y POWER Hybrid Energy Solution by Generator Storage and Solar energy. As you can see，when at morning 6 AM to 10 AM The sun arise, Solar panels start generating electricity. During this process, because the power provided by solar energy is not enough to s Read More

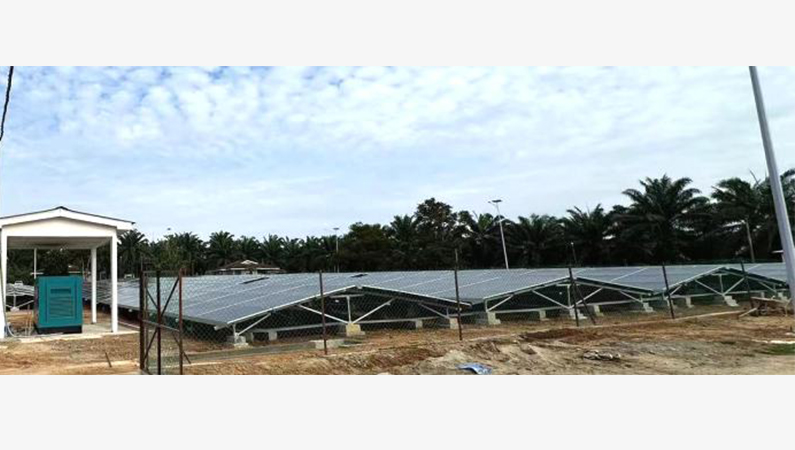

Micro-grid system of "light storage firewood" in Malaysia
This microgrid system can provide stable and clean energy supply for over 170 local households. The system is equipped with 8 506kWh battery cabinets and a 1000kW photovoltaic system. The project covers an area of over 1,000 square meters, with an average daily power generation capacity of 6,448kwh, Read More
Hybrid Lighthouse
here I would like to introduce DIY POWER Hybrid Power Lighting Tower to you, powered by generator, Solar and storage batteries.As you can see, In sunny days, solar power to charge the storage battery, power generation capacity with the strength of the light increases or decreases.When night comes, t Read More
