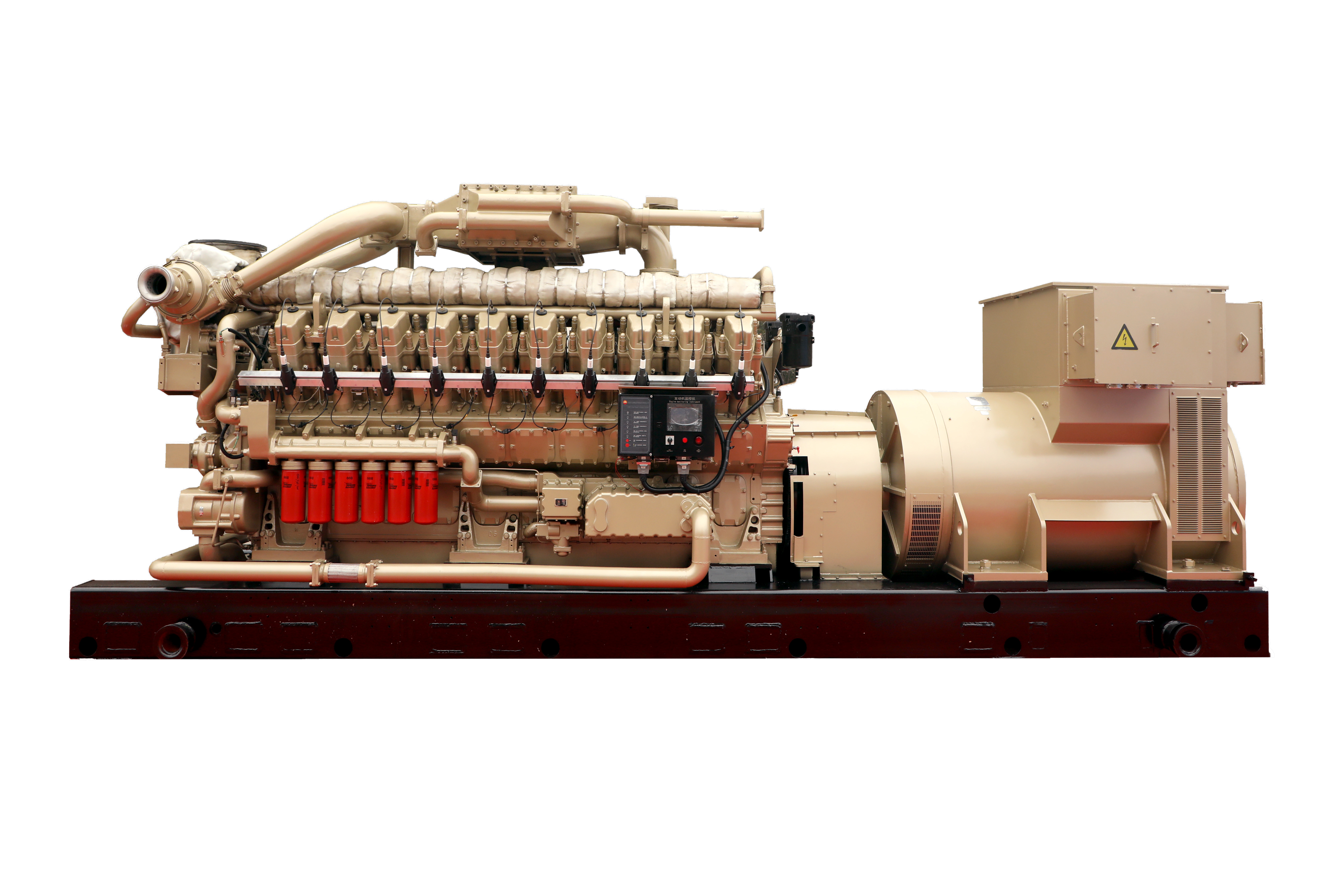

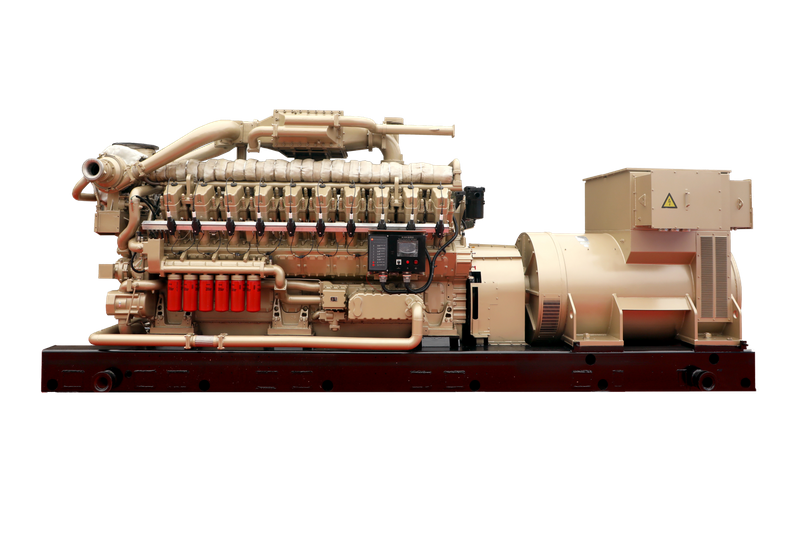

DIY-JC2000NGHV JiChai Nature Gas Generator Set High Voltage by L20V190ZLT-2

Name: DIY-JC2000NGHV JiChai Nature Gas Generator Set High Voltage by L20V190ZLT-2
Brand: JiChai
SKU: 184600886
Rating: 5.0 (61 reviews)

Gas generator sets are complete power generation equipment fueled by gases such as natural gas and biogas, primarily consisting of a gas internal combustion engine, an alternator, and a control system. Utilizing advanced technologies like lean-burn combustion, oxygen sensor closed-loop control, and patented combustion chambers, these units feature high power generation efficiency, stable and reliable operation, clean emissions, and low maintenance costs. With a wide power coverage ranging from 200 kW to over 1500 kW, they are extensively applied in scenarios including oilfield drilling, natural gas power stations, kitchen waste/biogas power generation, data center backup power, and microgrids, serving as crucial equipment for promoting green and low-carbon transformation in the energy sector.

Model:
DIY-JC2000NGHV
Brand:
JiChai
Model:
DIY-JC2000NGHV
Cop.Power:
2500kVA/2000kW
Frequency/RPM:
50/60HZ 1000/1200RPM
Engine Model:
L20V190ZLT-2

Frequency:	50Hz 1000RPM 60HZ 1200RPM
Availability:

Quantity:



Inquire Add to Basket

Nature Gas Generator Generator Nature Gas Gas Generator Price Best Gas Generator Gas Power Generator Generator Gas Powered gas generator set Gas Engine Generator Nature Gas Generator Price Nature Gas Power Generator

Technical Specification

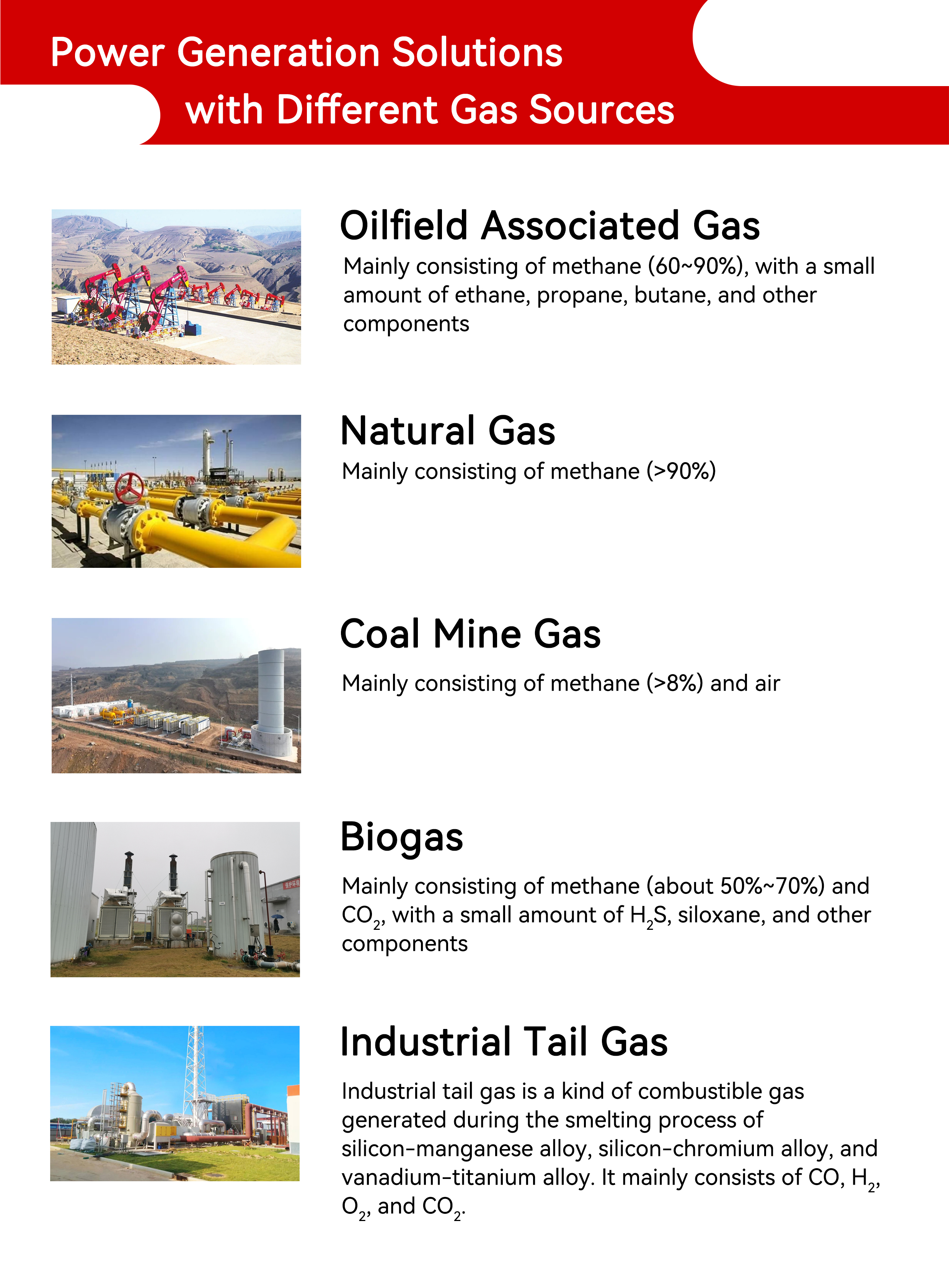

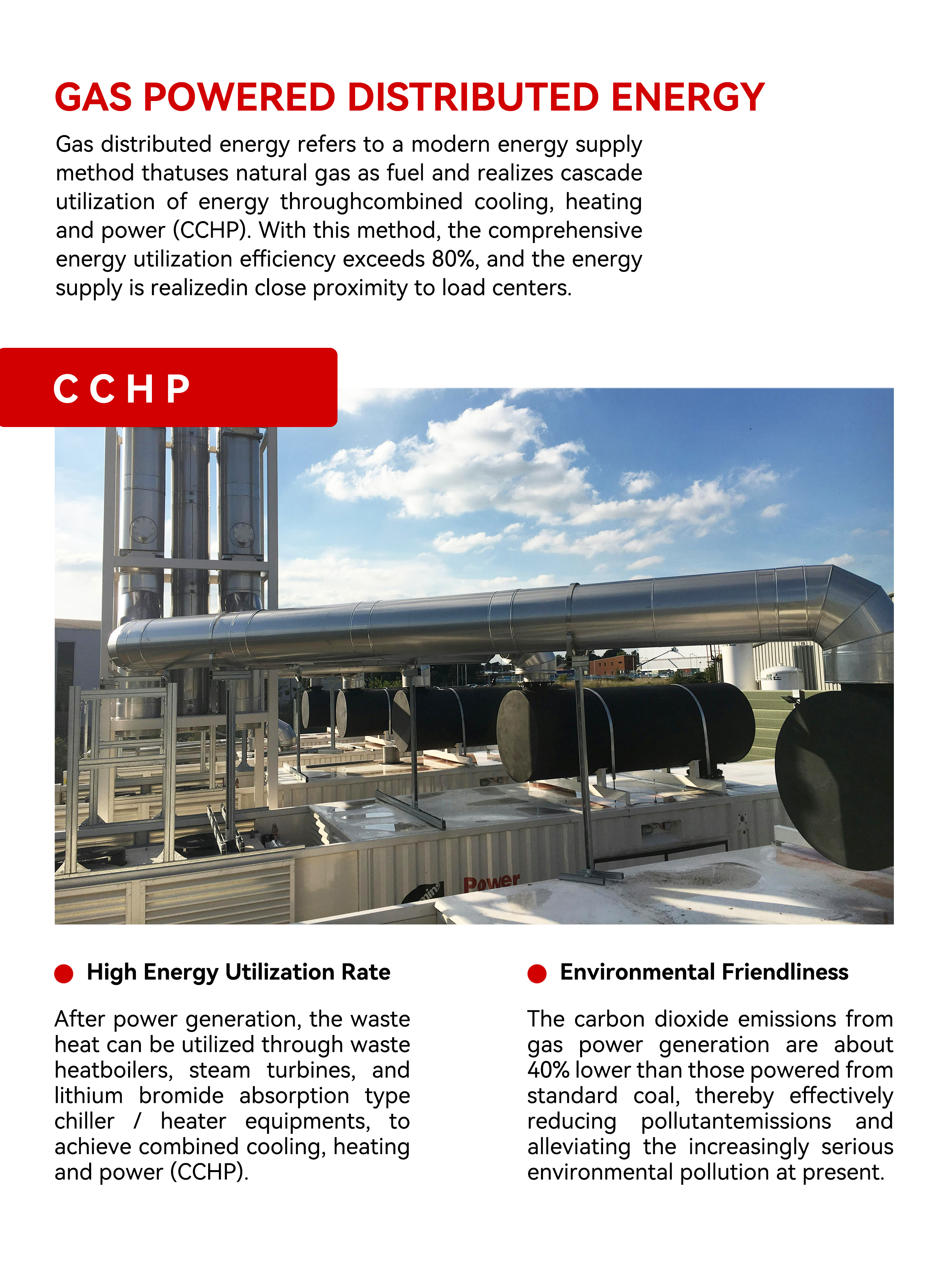

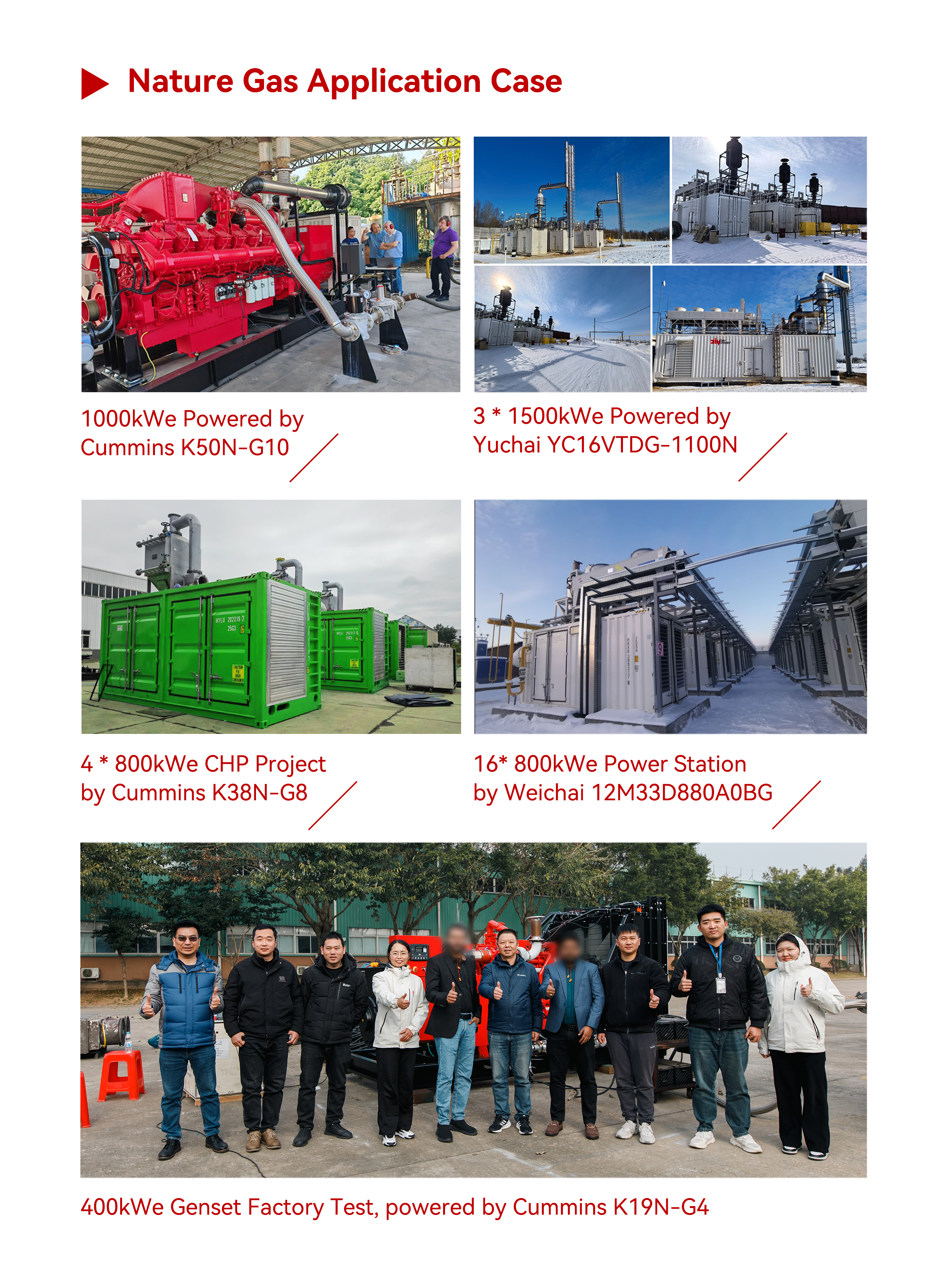

Applications

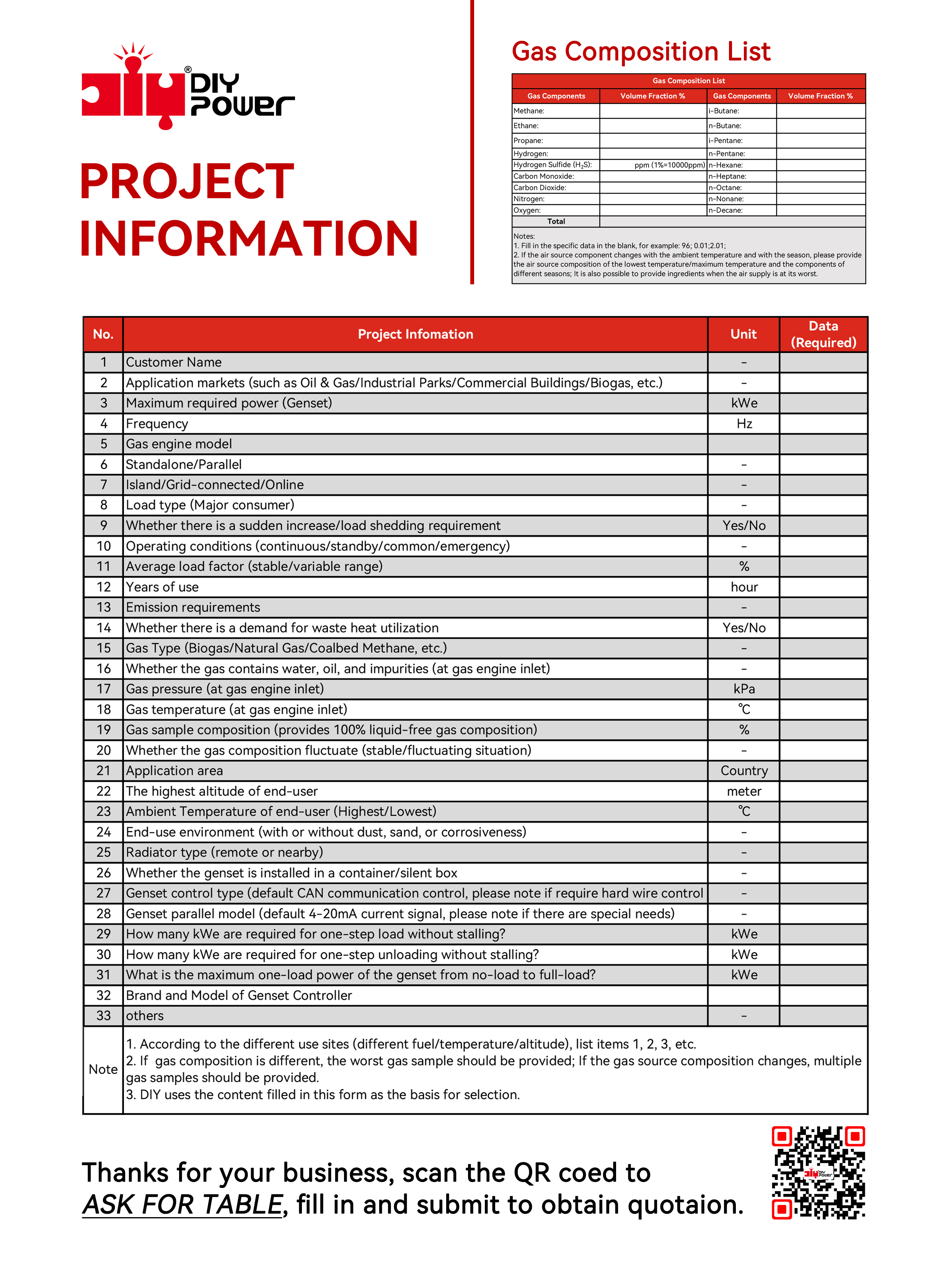

Price Inquiry Table

Catalog Download

Technical Specification

Genset Model	DIY-JC2000NGHV
Alternator Model	Brush-less Excitation, Automatic Voltage Regulation
Panel Model	GPL2000
Rated Power	2000kW
Electrical Efficiency	≥40%
Rated Voltage	400V / 480V / 6300V / 10500V / 13800V
Rated Frequency	50/60 Hz
Rated Power Factor	0.8
Wiring Mood	3 Phase 4 Wire / 3 Phase 3 Wire
Protection Class	IP23
Insulation Class	H
Stabilized State Voltage Regulation	≤ ±2.5%
Voltage Stabilization Time	≤ 6s
Fluctuation Rate of Voltage	≤ 1.0%
Stabilized State Frequency Regulation	0~5%
Frequency Stabilization Time	≤ 5s
Fluctuation Rate of Frequency	≤ 1.5%
Over All Dimension (mm)	903020642786 without Horizontal Radiator
Net Weight (kg)	30000 without Horizontal Radiator

Engine Model	L20V190ZLT-2
Type	Four Strokes, V Type, Turbocharged Inter-cooling, Spark Plug Ignition
Number of Cylinder	20
Bore	190 mm
Stroke	255 mm
Total Displacement	144.6 L
Rated Speed	1000 rpm
Rated Power	2200kW
Idle Speed	700 rpm
Gas Pressure	100~400 Kpa
Gas Consumption	≤ 8600 kJ/kW·h
Oil Consumption	≤ 0.3~0.6 g/kW·h
Exhaust Temperature (Before Turbocharged)	≤ 640 ℃
Water Outlet Temperature	< 95 ℃
Water Inlet Temperature of Intercooler	< 45 ℃
Oil Temperature	< 100 ℃
Stabilized Speed Droop	0~5%
Cooling Mood	Open type- Cooling tower/ Closed type - Vertical or Horizontal Radiator
Lubrication Method	Pressure and Splash Lubrication
Starting Mood	Electric Starting / Air Starting
Crankshaft Rotation	Counter-cllckwise (Facing to Flywheel)
Overhaul Period	60000 h
