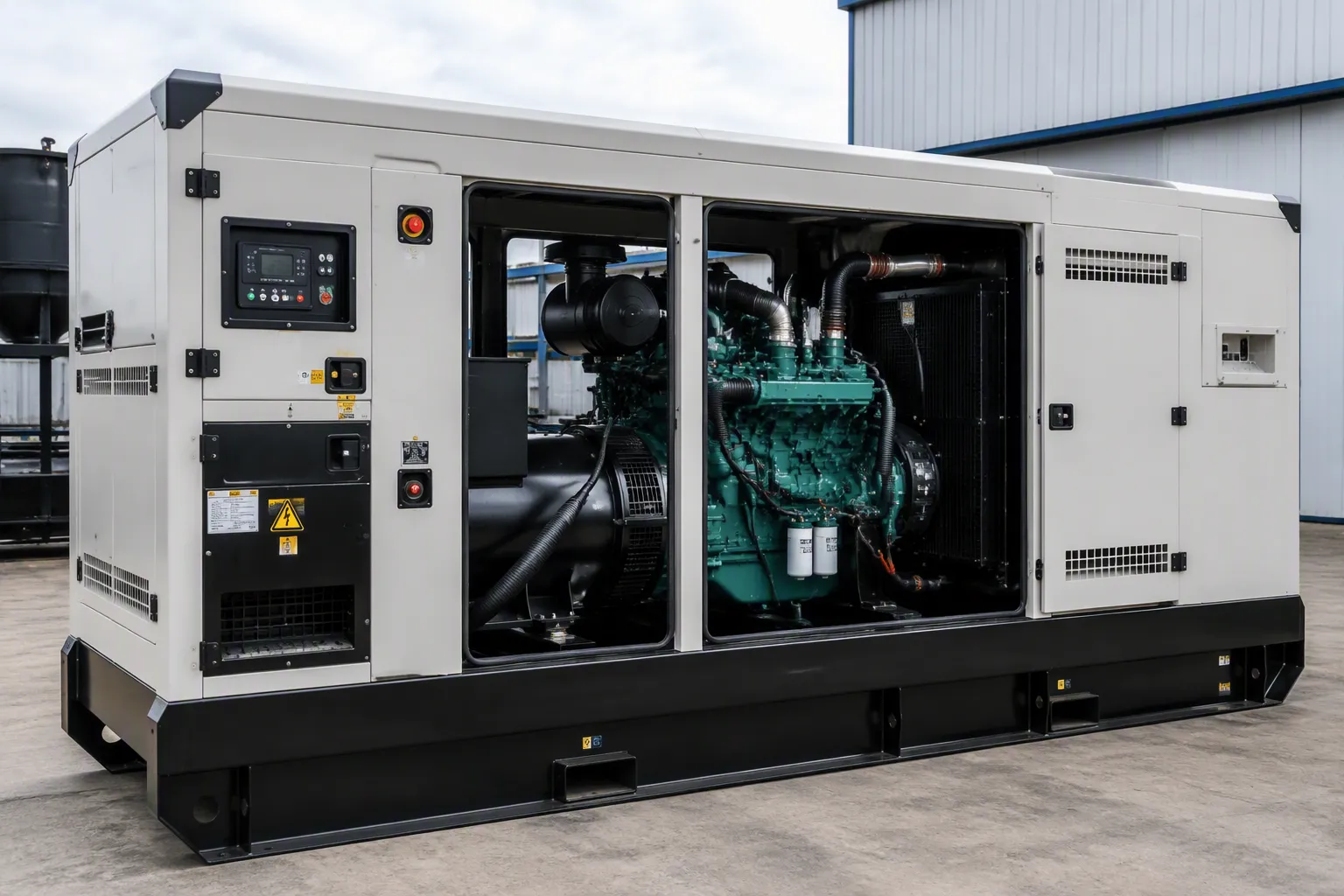

A genset is short for “generator set.” It is a complete power-generating system that combines an engine with an electrical generator, also called an alternator. The engine produces mechanical energy, and the alternator converts that energy into electricity.
A complete genset normally also includes a control panel, cooling system, starting system, base frame and fuel supply components. Depending on the application, it may include a protective enclosure, integrated fuel tank, automatic transfer switch or remote monitoring system.
Gensets are used for standby, prime and continuous power in factories, data centers, hospitals, construction sites, telecommunications facilities and locations without reliable grid access.
Table of Contents
The word “genset” is formed by combining “generator” and “set.” Other commonly used forms include:
Generator set
Generating set
Gen-set
Engine-generator set
Diesel genset
Gas genset
In the power generation industry, these terms usually describe an engine and alternator assembled as one coordinated system.
The word “set” is important because a genset contains more than a generator end. It includes the equipment required to produce, regulate and deliver electrical power.
In everyday language, people often call the complete machine a “generator.” This is widely understood. However, in technical specifications and procurement documents, “generator” may refer only to the alternator or generator end.
For a detailed technical comparison, read Generator vs. Generator Set: What Is the Difference?.
A generator set contains several mechanical, electrical and control components that work together.
The engine supplies the mechanical energy needed to drive the alternator. Most industrial gensets use diesel or gas engines, although other fuel configurations are also available.
Engine selection affects:
Rated output
Fuel consumption
Starting performance
Load acceptance
Maintenance requirements
Expected operating life
Emissions configuration
The engine must be correctly matched with the alternator and expected load profile. An undersized engine may struggle with sudden loads, while an incorrectly selected oversized system may operate inefficiently at low loads.
The alternator, sometimes called the generator end, converts the engine’s mechanical rotation into electrical energy through electromagnetic induction.
Its principal components include:
Rotor
Stator
Excitation system
Bearings
Cooling fan
Terminal box
The alternator determines important electrical characteristics such as voltage, frequency, phase configuration, insulation class and short-circuit performance.
The control panel monitors and manages generator set operation. Depending on the controller, it may display:
Voltage
Current
Frequency
Power output
Engine speed
Coolant temperature
Oil pressure
Battery voltage
Operating hours
Active alarms
Advanced controllers may support automatic starting, synchronization, load sharing, remote communication and integration with building management systems.
The engine and alternator generate heat during operation. The cooling system removes this heat to keep the genset within its approved operating temperature range.
Common components include:
Radiator
Cooling fan
Coolant pump
Thermostat
Hoses and pipework
Expansion tank
Cooling arrangements vary according to generator size, installation environment and operating duty.
The fuel system stores, filters and delivers fuel to the engine. A diesel genset may use an integrated base tank, an external bulk tank or a combination of both.
Typical diesel fuel system components include:
Fuel tank
Fuel lines
Lift pump
Fuel filters
Water separator
Injection pump or common-rail system
Fuel injectors
Fuel quality and filtration are especially important because water and contamination can damage precision diesel injection components.
A genset normally uses one or more batteries to power the starter motor and control system.
The starting and charging system may include:
Starting batteries
Starter motor
Starter solenoid
Battery charger
Engine-driven charging alternator
Battery isolator
Cold-start equipment
Industrial generator sets may use either 12-volt or 24-volt starting systems.
The base frame supports and aligns the engine and alternator. It may also incorporate vibration isolators and a fuel tank.
An enclosure may be added to provide:
Weather protection
Noise reduction
Controlled ventilation
Restricted access
Improved equipment security
Open-type generator sets are commonly installed inside dedicated generator rooms. Enclosed units are frequently selected for outdoor or noise-sensitive applications.
The air intake supplies clean air for combustion, while the exhaust system safely directs combustion gases away from the equipment and occupied areas.
Correct intake and exhaust design is essential for engine performance, temperature control and installation safety.

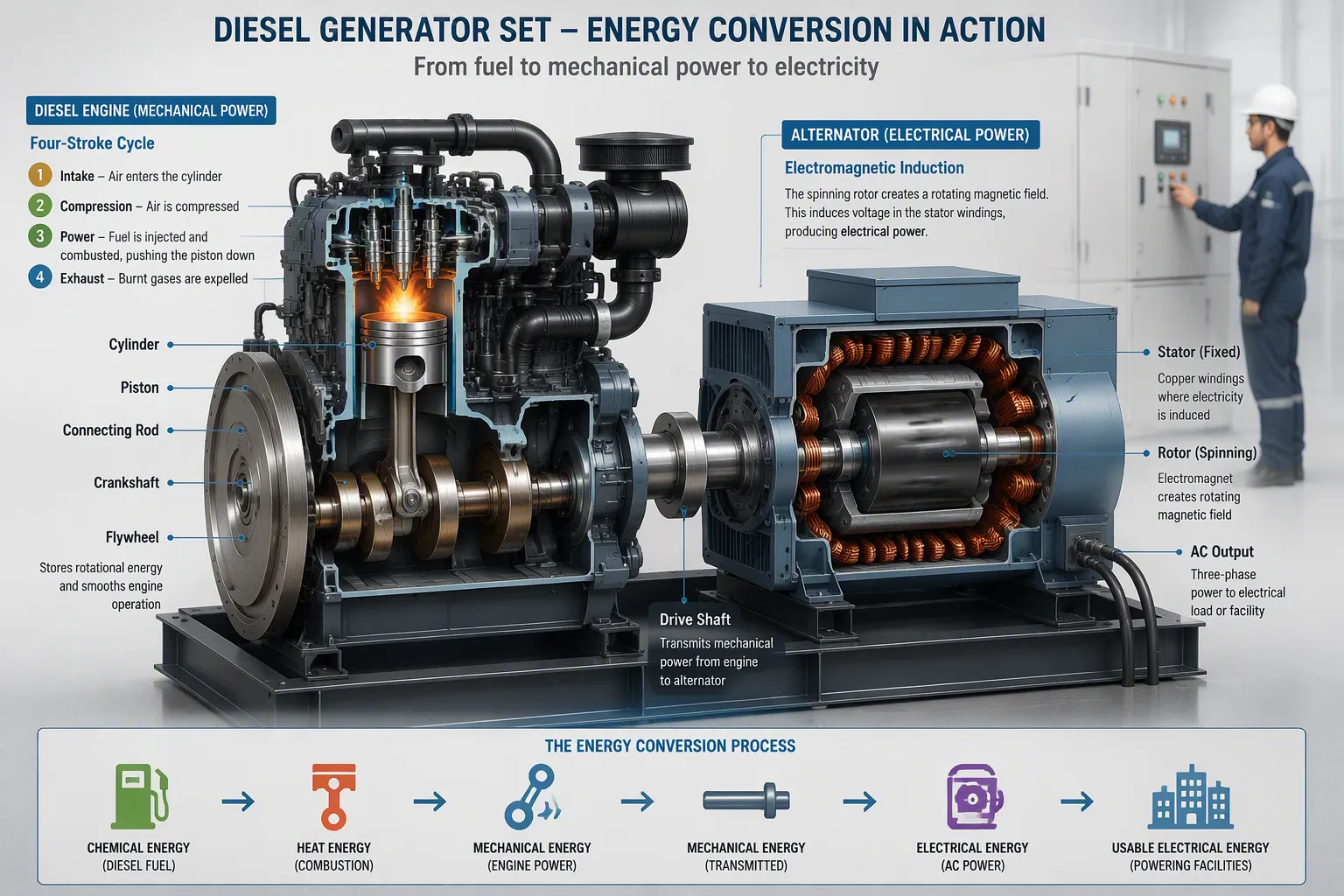

A genset converts fuel energy into electrical power in three main stages.
The engine burns diesel, natural gas or another suitable fuel. Combustion moves the pistons, turns the crankshaft and produces rotational mechanical energy.
In a diesel genset, the engine uses compression ignition. Air is compressed until it becomes hot enough to ignite the injected diesel fuel without a spark plug.
The engine crankshaft drives the alternator rotor. As the rotor’s magnetic field moves relative to the stator windings, it induces an alternating electrical current.
This process converts mechanical energy into AC electrical power.
The engine governor manages engine speed and therefore helps control electrical frequency.
The automatic voltage regulator adjusts alternator excitation to maintain the required voltage as the connected load changes.
The governor and AVR perform different functions:
Governor: controls engine speed and frequency
AVR: controls alternator excitation and voltage
Together, they help the genset deliver stable electrical output.
Generator sets can be classified by fuel, application, installation and power rating.
Diesel generator sets are widely used for industrial standby, prime and continuous power. They are valued for durability, fuel efficiency under suitable loading and broad power availability.
Common applications include:
Factories
Data centers
Hospitals
Mining operations
Construction projects
Telecommunications facilities
Infrastructure sites
Gas gensets may operate on natural gas, biogas or other approved gaseous fuels. They are frequently selected where a stable gas supply is available or where the equipment will operate for extended periods.
A standby genset supplies emergency power when the normal grid source fails. It is normally used for a limited number of operating hours and starts automatically through a transfer and control system.
A prime-power genset operates as the main power source where grid electricity is unavailable or unreliable. Its rating and load profile must match the intended operating conditions.
Continuous-power generator sets are designed to supply a relatively constant load for extended operating periods, subject to the manufacturer’s rating definition.
An open genset exposes the main components and is usually installed in a purpose-designed generator room.
An enclosed genset places the equipment inside a weatherproof or sound-attenuated canopy. Enclosure selection should account for ventilation, ambient temperature, noise requirements and maintenance access.
Mobile generator sets are mounted on trailers or transportable frames. They are suitable for construction, rental, temporary projects and emergency deployment.
Gensets provide electricity where grid power is unavailable, insufficient or too unreliable for critical operations.
Factories use gensets to protect production lines, control systems, pumps and essential machinery during grid outages.
Data centers require rapid and reliable backup power for servers, cooling equipment, networking systems and security infrastructure.
Hospitals and medical facilities use emergency generator sets to support critical equipment and essential building systems during power interruptions.

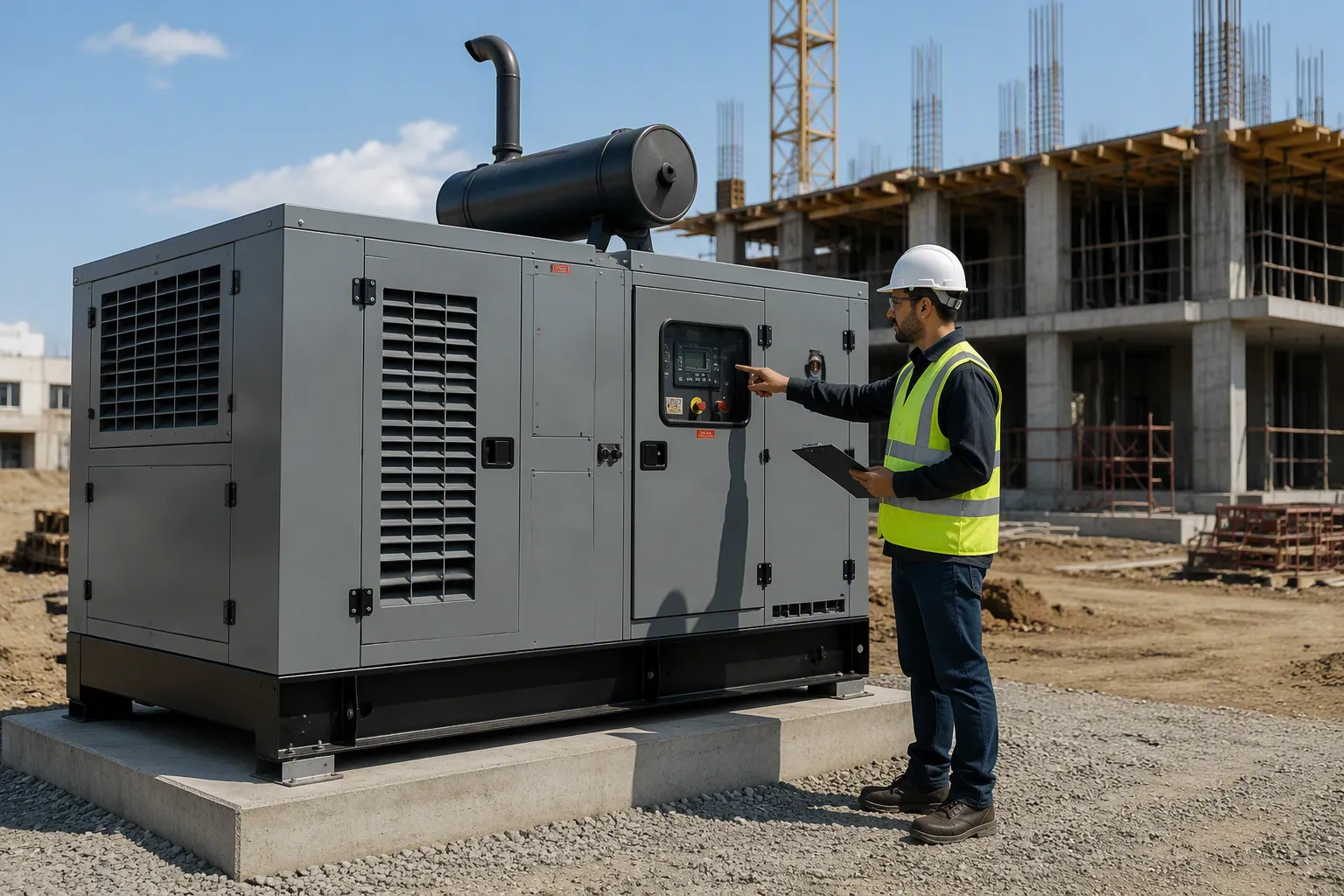

Construction sites, mines and remote infrastructure projects often use gensets as their primary power source.
Telecommunications networks use generator sets to maintain power at base stations, switching facilities and remote communication sites.
Commercial facilities use standby gensets to support lighting, elevators, safety systems, refrigeration and other essential loads.
Generator set capacity is commonly expressed in kilowatts and kilovolt-amperes.
kW measures real power that performs useful work.
kVA measures apparent power, which includes both real and reactive power.
Power factor represents the relationship between kW and kVA.
The basic relationship is:
Energy Storage System
kW = kVA × Power FactorFor example, a 500 kVA generator set rated at a 0.8 power factor provides 400 kW:
500 kVA × 0.8 = 400 kWCorrect genset sizing should also consider motor starting current, nonlinear loads, ambient conditions, future expansion and the required operating rating.
Before selecting a generator set, confirm the following requirements:
Total running load
Largest starting load
Required voltage
Required frequency
Single-phase or three-phase output
Standby, prime or continuous duty
Fuel availability
Ambient temperature
Installation altitude
Indoor or outdoor installation
Noise requirements
Emissions requirements
Automatic transfer requirements
Future load growth
A generator set should be selected according to the complete operating profile, not only the total connected wattage.
A generator set requires regular mechanical and electrical maintenance. The exact schedule depends on the engine, alternator, operating hours, fuel type and environment.
Typical maintenance items include:
Inspecting engine oil and coolant levels
Testing starting batteries
Checking fuel condition
Draining the water separator
Replacing fuel, oil and air filters
Inspecting belts, hoses and electrical connections
Testing the automatic starting system
Checking voltage and frequency
Inspecting the cooling and exhaust systems
Running scheduled operational or load tests
Always follow the operation and maintenance manual for the specific engine and generator set.
Genset is an abbreviation of generator set. It describes a complete power system that combines an engine, alternator, controls and supporting components.
In everyday language, the terms are often used interchangeably. In strict technical use, a generator may mean only the alternator, while a genset refers to the complete engine-driven power system.
Other names include generator set, generating set, gen-set and engine-generator set.
Yes. An engine and alternator are the two main components of a conventional generator set.
No. Some generator sets have integrated base tanks, while larger installations may use external day tanks or bulk fuel storage systems.
A fuel-powered portable generator normally combines an engine and alternator in one unit, so it can technically be considered a small genset.
Depending on its engine, a genset may use diesel, natural gas, biogas, gasoline, propane or another approved fuel.
kW measures usable real power, while kVA measures apparent power. The relationship between them depends on the power factor.
Yes. A correctly installed genset can produce electricity independently of the utility grid. It still requires fuel, starting power and suitable control and distribution equipment.
An industrial genset is a generator set designed for commercial, industrial, infrastructure or critical-power applications. It normally provides higher capacity and more advanced controls than small portable equipment.
A genset is a complete generator set that combines an engine, alternator, controls and support systems to produce electrical power.
The engine creates mechanical energy, the alternator converts that energy into electricity, and the control system regulates the output. Gensets are available in different fuels, configurations and ratings for standby, prime and continuous-power applications.
