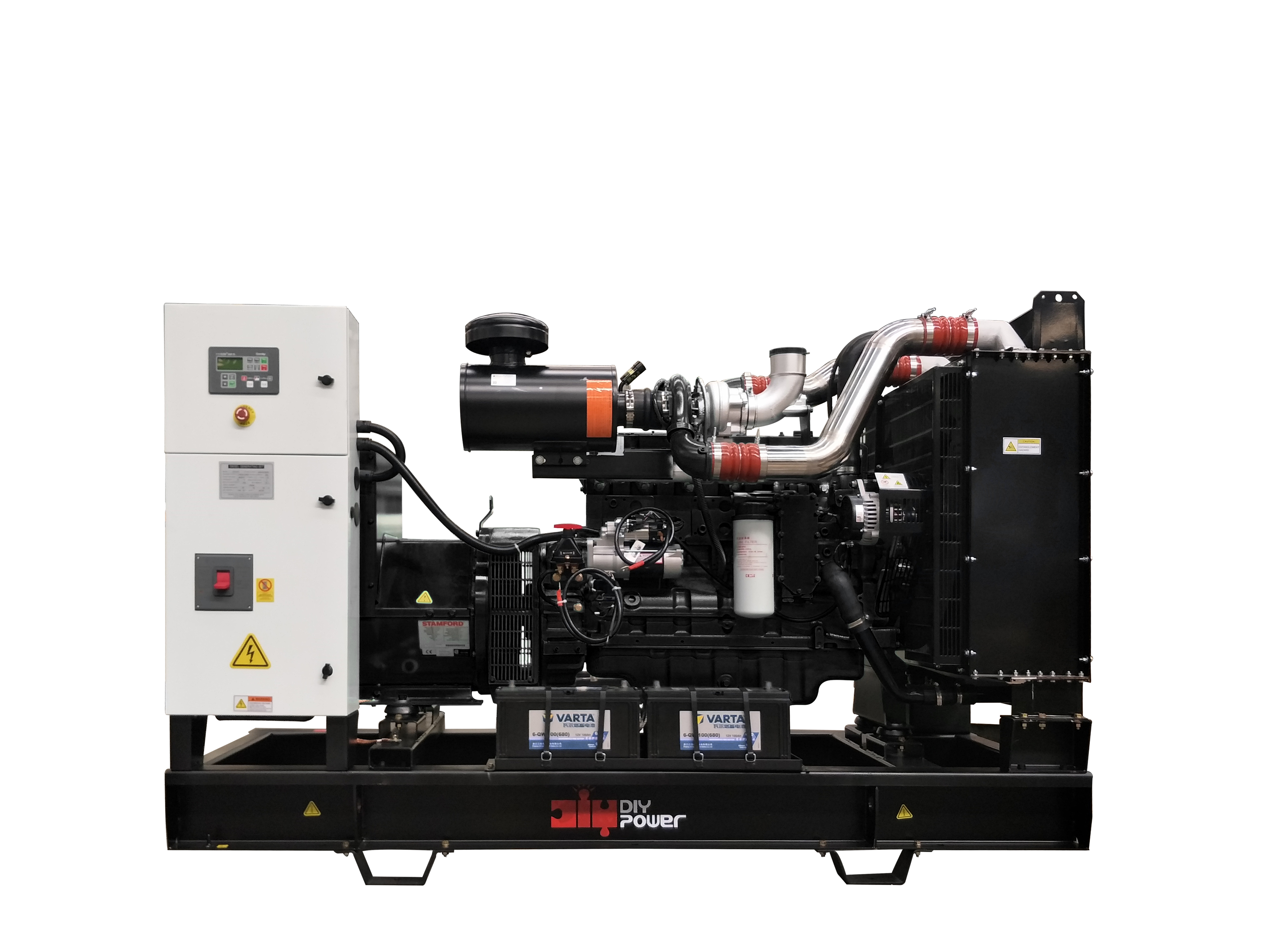

Unstable generator output threatens sensitive electronics, industrial machinery, and critical infrastructure. Power fluctuations cause immediate equipment failure and extended downtime. When a generator fluctuates under load or outputs voltage outside acceptable tolerances, operators face a direct diagnostic challenge. You must determine whether the issue stems from engine speed or excitation control. Failing to isolate and correct excitation issues degrades power quality continuously, burning out motors and frying logic boards.
Restoring reliable power requires precise calibration or strategic replacement of the generator voltage regulator. This guide details the technical protocols for safely adjusting, testing, and evaluating these components. We cover baseline testing, potentiometer adjustments, and field flashing procedures. Following these steps guarantees stable power delivery across various operational environments.
Table of Contents
Precision is Non-Negotiable: Adjusting a generator voltage regulator requires isolating the unit from the load and utilizing calibrated multimeters to hit exact baseline targets (e.g., 120V/240V for standard units, or specific phase-to-phase voltages for industrial systems).
Beyond Basic Voltage: Proper calibration involves tuning secondary parameters, including the Under-Frequency Roll-Off (UFRO) knee point and stability (STAB) settings, to prevent voltage collapse and oscillation during load changes.
Repair vs. Replace Threshold: If an AVR fails to hold a steady voltage after potentiometer adjustments, or if the potting compound shows thermal degradation, immediate replacement is required to mitigate downstream equipment risk.
System Compatibility: Selecting a replacement regulator requires matching the generator's excitation method (Shunt, PMG, or AREP) to ensure transient response capabilities meet operational demands.
Clean power defines the baseline for modern electrical operations. It requires stable voltage and frequency under varying loads. The primary success metric for a functional excitation system is maintaining output voltage within a tight tolerance. Industry standards demand ±1% to ±2% deviation. This tolerance must hold regardless of input changes or sudden load fluctuations. Equipment downstream relies entirely on this stability. When voltage drops, amperage spikes. This inverse relationship causes motor windings to overheat and magnetic contactors to chatter, eventually welding themselves shut.
The regulator acts as the brain of the alternator. It continuously monitors the output voltage directly from the stator windings. It compares this actual voltage against a predetermined setpoint. When a load connects to the generator, the output voltage naturally drops. The regulator detects this drop instantly. It responds by increasing the DC current sent to the exciter stator. This increased magnetic field induces a higher AC voltage in the exciter rotor, which is rectified to DC and fed to the main rotor. The strengthened main magnetic field boosts the stator output, restoring equilibrium. The entire process happens in milliseconds.
Field technicians must isolate excitation faults from governor faults before attempting calibration. You can identify the root cause by observing the relationship between voltage and frequency. Establish this baseline to avoid unnecessary component adjustments.
Symptom Observed Under Load | Frequency (Hz) Status | Primary Suspect | Recommended Action |
|---|---|---|---|
Voltage drops significantly (>10%) | Stable (e.g., holds at 60Hz) | Excitation System / Regulator | Adjust VOLT pot; test exciter stator resistance. |
Voltage and Frequency drop together | Drops proportionally (e.g., falls to 55Hz) | Engine Governor / Fuel Delivery | Check fuel filters, adjust governor linkage. |
Voltage hunts (oscillates up and down) | Stable | Regulator Stability Circuit | Tune STAB potentiometer. |
Zero voltage output at startup | Stable | Loss of Residual Magnetism / Blown AVR | Flash the field; inspect regulator for damage. |
Adjusting live electrical equipment carries severe risks. Arc flash incidents and electrocution remain constant threats during diagnostic procedures. Catastrophic generator damage happens if adjustments are made improperly. Never attempt to calibrate the unit while it is connected to a facility load. A sudden voltage spike during adjustment will destroy connected electronics. Always isolate the generator using the main output breaker before beginning any calibration sequence.
Proper calibration requires specific, calibrated instruments. Do not rely on the analog gauges built into the generator panel. They lack precision, often sticking or drifting over time.
True-RMS multimeters. Standard multimeters calculate RMS based on a perfect sine wave. Generators under load often produce distorted waveforms. Only a True-RMS meter provides accurate voltage readings in these conditions.
Digital frequency meters or optical tachometers to verify engine RPM.
Insulated precision screwdrivers (often flathead) for potentiometer adjustments.
Dielectric gloves rated for the generator's maximum output voltage.
Arc flash face shield and fire-resistant clothing.
Generators experience thermal expansion. Copper windings change resistance as they heat up. You must bring the generator to its normal operating temperature before taking baseline readings. Follow this exact sequence to prepare the machine for calibration.
Disconnect all facility loads by opening the main generator circuit breaker.
Start the engine and let it idle for two minutes to circulate oil.
Bring the engine up to rated speed.
Run the unit unloaded for at least fifteen minutes to reach thermal equilibrium.
Verify the engine runs at the standard operating speed. For 60Hz systems, this requires exactly 3600 RPM (or 1800 RPM for 4-pole units). For 50Hz systems, target 3000 RPM (or 1500 RPM).
Confirm the frequency output is dead-on. Frequency dictates voltage potential. If the frequency is off, your voltage calibration will fail.
You must first locate the regulator block. On most industrial and commercial units, it sits inside the alternator end-bell. Remove the louvered access panels at the rear of the alternator. For household and portable generators, the component usually resides directly behind the control panel housing or under the end cover. Remove the mounting screws carefully. Handle the quick-connect wiring harnesses with caution. Old wires become brittle due to heat exposure. Do not pull on the wires themselves; grip the plastic connectors firmly and wiggle them free.
Establish your starting point. With the engine stabilized and the main breaker open, measure the no-load voltage directly at the main breaker terminals using your True-RMS multimeter. Record this initial reading. Compare it against your target voltage to establish the current deviation. This baseline tells you how aggressive your adjustments need to be.
The voltage potentiometer is typically marked "VOLT" or "V" on the component block. It features a small brass or plastic adjustment screw. Insert your insulated screwdriver into the VOLT potentiometer. Turn the screw very slowly. Clockwise turns generally increase the voltage. Counter-clockwise turns decrease it. Watch the multimeter closely. Adjust in tiny increments and wait two seconds for the magnetic field to stabilize.
System Type | Nominal Voltage Target | Recommended No-Load Setting | Reasoning |
|---|---|---|---|
Portable Single-Phase (120V) | 120V | 122V - 124V | Accounts for 2-4V droop when a heavy tool or appliance starts. |
Split-Phase Residential (120/240V) | 240V | 244V - 248V | Ensures voltage does not dip below 230V under full house load. |
Industrial Three-Phase (277/480V) | 480V | 480V - 482V | Industrial regulators have tighter tolerances and less droop. |
The UFRO setting protects the exciter from overheating during low-speed operation. It establishes a "knee point" where the regulator begins to drop voltage proportionally with engine speed. For a 60Hz system, this knee point is usually set around 58Hz or 59Hz. If the engine speed drops below this point, the voltage drops to prevent excessive current in the exciter field.
If you set the UFRO knee point too high, the generator will prematurely cut voltage during normal minor speed fluctuations. This mimics a power failure and causes load rejection. Adjust the UFRO potentiometer only if you have verified the engine frequency is perfectly stable at 60Hz (or 50Hz) and the voltage still drops erratically. To set it, lower the engine speed manually to 58Hz, turn the UFRO pot until the voltage just begins to drop, then return the engine to 60Hz.
The stability potentiometer controls the reaction time of the excitation system. It prevents voltage hunting, which is a continuous oscillation of voltage up and down. If the voltage meter needle bounces rhythmically, the stability setting is off. Turn the STAB screw slowly until the voltage reading locks in solid. Do not turn it too far. Over-adjusting the stability makes the transient response too sluggish. A sluggish response means the generator will take too long to recover its voltage when a large motor load kicks on, potentially stalling the motor.
When calibration fails, replacement becomes mandatory. The market offers three primary categories for replacement components. Original Equipment Manufacturer (OEM) parts provide direct, exact-match replacements. Universal aftermarket units offer broad compatibility across various brands. Upgraded digital regulators provide advanced control for complex power systems.
You must evaluate replacements based on strict technical dimensions. Compatibility is the foremost concern. You must match the new component to the generator's specific excitation type. A Self-excited (Shunt) system relies on residual magnetism and stator output. A Permanent Magnet Generator (PMG) system uses a separate rotor to provide clean, isolated power to the regulator. You cannot swap these types interchangeably.
Scalability and advanced features matter for larger installations. Digital units offer programmable PID control. They allow technicians to fine-tune the exact response curve of the generator. Many digital units also include remote monitoring capabilities and data logging. This allows facility managers to track transient events and predict failures before they cause downtime.
Every replacement choice involves trade-offs. You must weigh upfront costs against long-term reliability.
Regulator Type | Primary Advantage | Primary Disadvantage | Best Use Case |
|---|---|---|---|
OEM Direct Replacement | Exact form factor, guaranteed compatibility, proven MTBF. | Higher initial purchase price, sometimes subject to supply chain delays. | Mission-critical infrastructure, hospital backups, data centers. |
Universal Aftermarket | Readily available, lower upfront cost. | Requires custom mounting, wiring modifications, lower thermal tolerance. | Legacy equipment, portable construction generators, agricultural pumps. |
Digital Upgrades | Programmable PID loops, remote monitoring, precise transient control. | Requires specialized software to program, complex installation. | Synchronized multi-generator setups, heavy industrial plants. |
Physical installation requires methodical execution to prevent wiring faults. A loose connection here will destroy the new component instantly.
Document the existing wiring harness before removing the old unit. Take clear photographs. Note the specific locations of the F+ (positive field), F- (negative field), sensing leads, and power inputs.
Disconnect the battery to prevent accidental engine starts.
Remove the faulty unit and clean the mounting surface. Remove any old thermal paste or debris.
Mount the new unit securely. Ensure adequate heat dissipation. Generators vibrate heavily. Loose mounting leads to component fracture. Use thread-locking fluid on the mounting bolts.
Terminate all connections with proper torque. High-resistance faults occur when spade connectors or terminal screws are left loose. Crimp new spade terminals if the old ones show signs of oxidation.
Verify every connection matches your initial documentation before restoring battery power.
Generators sometimes lose their residual magnetism. This happens after long periods of storage, catastrophic electrical failure, or when replacing major excitation components. Without residual magnetism, the new regulator has no baseline voltage to read upon startup. It will not excite the field. You will start the engine, and the multimeter will read zero volts.
You must perform a field flashing (polarization) procedure. Disconnect the F+ and F- wires from the regulator completely. If you leave them connected, the battery voltage will backfeed and blow the diodes in your new regulator. Connect the negative terminal of a standard 12V battery to the F- wire. Connect a jumper wire to the positive terminal of the 12V battery. Briefly touch the other end of the jumper wire to the F+ wire. Hold it for no more than three to five seconds. You will see a small spark. This completes the circuit and restores the magnetic field in the rotor. Reconnect the wires to the regulator and start the generator.
Static no-load testing only proves the unit works at rest. You must perform a step-load test to evaluate transient response. Connect the generator to a resistive/reactive load bank or a controlled facility load. Apply a tiered load sequence. Monitor the voltage recovery time at each step.
Load Step | Expected Voltage Dip | Expected Recovery Time | Action if Test Fails |
|---|---|---|---|
0% to 25% Load | < 5% | < 1 second | Verify engine fuel delivery is steady. |
25% to 50% Load | < 10% | 1 - 1.5 seconds | Adjust STAB pot slightly clockwise. |
50% to 100% Load | < 15% | 1.5 - 2 seconds | Check exciter rotor diodes for failure. |
If the voltage collapses or oscillates violently during the step-load test, the STAB settings require further tuning. If tuning fails, the exciter stator or main rotor may have shorted windings.
Professional maintenance requires rigorous documentation. Log the final no-load and full-load voltage metrics. Record the frequency readings at each load step. This documentation satisfies facility maintenance audits. It keeps warranty requirements intact. Safety compliance standards demand proof that the generator operates within specified tolerances. Keep this log in the generator enclosure for future reference. Write the date and final voltage settings directly on the regulator housing with a paint pen.
Conduct a baseline no-load voltage test today using a True-RMS multimeter to identify any existing drift.
Verify your engine frequency output holds steady at 60Hz or 50Hz before making any voltage adjustments.
Inspect the physical condition of the regulator block for melted potting compound, burnt terminals, or cracked housings.
Perform a tiered step-load test annually to verify transient response capabilities and log the recovery times.
Replace the unit with an OEM equivalent immediately if potentiometer adjustments fail to stabilize the power supply.
A: For standard portable units, set the no-load voltage between 122V and 124V. For 5000W+ split-phase systems, target 244V to 248V at no-load. This slightly elevated setting compensates for natural voltage droop when heavy loads connect, keeping the loaded voltage near the nominal target.
A: Symptoms include erratic voltage hunting, output voltage dropping significantly under load while engine RPM remains stable, or the generator producing zero voltage. Physical signs include burnt smells, cracked housings, or melted potting compound on the component block.
A: If the Under-Frequency Roll-Off knee point is set too high, the generator will prematurely cut output voltage during normal, minor engine speed drops. This mimics a power failure and causes connected equipment to shut down unnecessarily.
A: No. Bypassing this component sends unregulated current to the exciter field. This causes runaway voltage, instantly destroying connected electronics and causing catastrophic thermal damage to the generator stator windings.
A: Disconnect the field wires from the regulator. Connect a 12V battery's negative terminal to the negative field wire. Briefly touch a jumper from the battery's positive terminal to the positive field wire for three seconds to restore residual magnetism.
A: Fluctuation under load usually indicates an improperly tuned stability (STAB) potentiometer, a failing excitation component, or an engine governor struggling to maintain consistent RPM. You must isolate frequency stability from voltage stability first.
A: A shunt system draws power directly from the main stator, meaning voltage drops can impair excitation during heavy motor starts. A Permanent Magnet Generator (PMG) uses a separate rotor to provide isolated, clean power, offering superior transient response.
