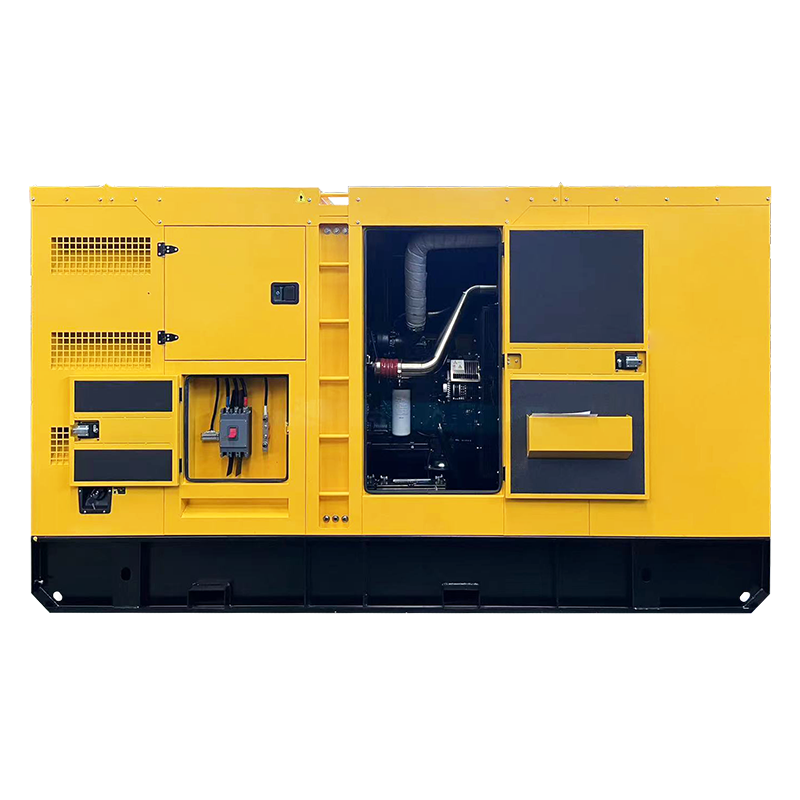

When the sun vanishes for days and your battery bank drains, relying strictly on solar power leaves your site vulnerable. Prolonged weather events and high-demand cycles demand redundancy. Integrating a traditional fuel-based generator set with a solar array solves this energy deficit. However, the physical integration introduces heavy technical friction. Improper wiring, mismatched frequencies, or reverse polarity will fry sensitive inverters, degrade battery health, and create severe fire hazards. This guide delivers a step-by-step, code-compliant framework for safely connecting a backup generator to your solar hardware. We cover hardwired off-grid architectures and portable configurations. You will learn how to match component specifications, configure charge parameters, and implement the correct transfer mechanisms to ensure safe operation across your power infrastructure.
Inverter Compatibility is Non-Negotiable: Success depends on matching the generator’s Total Harmonic Distortion (THD) and output capacity with the solar inverter’s AC input tolerances.
Transfer Mechanisms Dictate Safety: A properly sized Manual Transfer Switch (MTS) or Automatic Transfer Switch (ATS) is legally and functionally required to prevent lethal backfeeding into the grid or solar array.
Charge Parameters Must Be Configured: Connecting the hardware is only half the process; configuring the inverter/charger to respect the battery bank’s maximum charge acceptance rate prevents thermal runaway.
Grounding Architecture Matters: Resolving floating neutral versus bonded neutral conflicts between the generator and the solar system is critical for fault protection and system stability.
Table of Contents
Seamless load transfer, efficient battery charging, and zero hardware damage define a proper installation. When the solar array underproduces, the generator steps in without causing voltage spikes or frequency drops that force the inverter to trip. You must understand how power flows between the generator, the inverter, the batteries, and the load panel before pulling any wire.
System architecture falls into two categories: AC coupling and DC coupling. Each dictates how the generator interacts with the existing solar components.
In an AC-coupled setup, the generator supplies the AC panel directly. The solar inverter synchronizes with the generator's AC waveform. The generator acts as the grid. The solar inverter detects the AC voltage and frequency, matches it, and pushes solar power onto the same AC bus. This demands a generator with exceptional frequency stability. If the frequency drifts, the solar inverter drops the connection immediately to protect its internal boards.
In a DC-coupled setup, the generator feeds an inverter/charger to charge the DC battery bank. The battery bank acts as the central buffer before powering the loads. The generator produces AC power. The inverter/charger rectifies this into DC power to charge the batteries. The inverter then pulls from the batteries to create clean AC power for the site. This architecture isolates sensitive household loads from the generator's dirty AC waveform. It is highly reliable for off-grid applications.
Feature | AC Coupling | DC Coupling |
|---|---|---|
Primary Power Flow | Generator to AC Panel | Generator to Battery Bank |
Inverter Synchronization | Requires precise frequency matching | Inverter rectifies AC to DC |
Load Protection | Loads exposed to generator waveform | Loads isolated by battery buffer |
Best Application | Grid-tied systems with backup | Strictly off-grid setups |
Modern hybrid inverters act as the brain of the generator solar system. They manage multiple power inputs and prioritize solar yield before drawing from the generator. When battery voltage drops to a user-defined threshold, the hybrid inverter sends a two-wire start signal to an auto-start compatible generator. The inverter waits for the generator to warm up, synchronizes with the incoming AC power, and smoothly transfers the loads. It simultaneously routes excess generator capacity to the battery charger. Once the batteries reach a target state of charge, the inverter transfers loads back to battery power and shuts down the generator. This optimizes fuel consumption and reduces engine wear.
Connecting incompatible hardware leads to immediate system failure. You must evaluate generator output, power quality, and battery charge limits before making any physical connections.
Sizing the generator correctly prevents stalling, overloading, and inefficient fuel consumption. The generator must provide enough power to run the continuous household loads while simultaneously charging the battery bank.
Use this formula to size the generator: (Continuous Load + Battery Charge Load) + 20% buffer.
If your site draws 3,000 watts continuously and your inverter's battery charger consumes 2,000 watts, the total demand hits 5,000 watts. Adding a 20% buffer requires a generator capable of sustaining 6,000 watts continuously. Undersizing the generator causes severe voltage drops when heavy loads start. This forces the inverter to reject the incoming power. Oversizing the generator leads to inefficient fuel consumption. In diesel units, running at a low load percentage causes wet stacking. Unburned fuel accumulates in the exhaust system and degrades engine lifespan.
Generators lose power at high altitudes and extreme temperatures. A generator rated for 5,000 watts at sea level will not produce 5,000 watts at 6,000 feet of elevation. The thinner air reduces the engine's ability to burn fuel efficiently. Standard derating formulas suggest a 3.5% power loss for every 1,000 feet above sea level. High ambient temperatures also reduce output by roughly 1% for every 10 degrees above 60°F. If you install an off-grid cabin in the mountains, you must factor these environmental deratings into your sizing calculations. Failing to account for altitude means your generator will stall when the inverter demands its full rated load.
Solar inverters are highly sensitive to power quality. Conventional modified sine wave generators produce jagged electrical waveforms with high Total Harmonic Distortion (THD). Pure sine wave inverter generators produce clean, smooth waveforms identical to utility grid power.
Most solar inverters require a generator THD of less than 5% to accept the AC input without disconnecting. If you connect a conventional construction generator with 15% THD, the solar inverter's protection circuits interpret the dirty power as a grid fault and refuse to connect. Always specify an inverter-generator for solar integration to ensure the hybrid inverter accepts the charge.
Pushing too much current into a battery bank causes thermal runaway, cell degradation, and potential fire hazards. You must calculate the maximum charge current for your specific battery chemistry.
Lithium-iron phosphate (LiFePO4) batteries typically accept a charge rate of 0.5C. You can charge them at half their total amp-hour capacity. A 100Ah LiFePO4 battery safely accepts 50 amps. Lead-acid batteries have a much lower acceptance rate, usually between 0.1C and 0.2C. A 100Ah lead-acid battery should only be charged at 10 to 20 amps.
Fast-charging via a generator improves fuel efficiency by reducing generator run time. However, exceeding the manufacturer's recommended charge rate accelerates battery degradation. You must configure the inverter/charger settings to respect these physical limits.
Battery Chemistry | Recommended Charge Rate | Max Charge Rate | Example (100Ah Bank) |
|---|---|---|---|
Lead-Acid (Flooded) | 0.1C | 0.15C | 10A - 15A |
AGM / Gel | 0.15C | 0.2C | 15A - 20A |
Lithium (LiFePO4) | 0.5C | 1.0C | 50A - 100A |
Hardwiring a generator into an off-grid system requires strict adherence to electrical safety protocols. Follow this sequence to establish a secure, reliable connection.
Never work on live circuits. Execute a complete shutdown sequence before opening any electrical panels.
Disconnect the solar PV breakers to stop power flowing from the panels to the charge controller.
Isolate the battery bank by turning off the main DC disconnect switch.
Shut off the main AC breakers to kill power to the household loads.
Turn off the inverter.
Implement Lockout/Tagout (LOTO) procedures. Place physical locks on the breakers to prevent anyone from accidentally re-energizing the system while you are working.
A transfer switch routes power safely and prevents the generator from feeding power backward into the inverter output or the utility grid. The wiring path flows from the Generator to the Generator Breaker, into the Transfer Switch, and finally to the Inverter AC Input or Main Panel.
Evaluate the trade-offs between an Automatic Transfer Switch (ATS) and a Manual Transfer Switch (MTS). An ATS offers convenience by detecting power loss and automatically switching the load to the generator. It involves higher costs and complex control wiring. An MTS requires manual intervention to flip the switch but offers high reliability, lower cost, and simpler installation. For most off-grid setups with hybrid inverters, the inverter itself acts as the ATS, utilizing a dedicated generator input port.
Modern hybrid inverters feature dedicated generator input terminals, often labeled "GEN," "AC IN 2," or "AUX." Clearly identify these ports to avoid crossing wires with utility grid inputs.
When running wires from the generator to the transfer switch and inverter, use THHN/THWN-2 wire inside protective conduit. Do not use standard Romex (NM-B) in outdoor or underground conduit, as it is not rated for wet locations. Ensure your conduit is sized correctly to prevent exceeding fill limits, which causes wires to overheat.
Connect Line 1 (typically black) to the L1 terminal.
Connect Line 2 (typically red) to the L2 terminal for 240V split-phase systems.
Connect the Neutral wire (typically white) to the Neutral terminal.
Connect the Ground wire (typically green or bare copper) to the Ground bus bar.
Torque all connections to the manufacturer's specified inch-pounds using a calibrated torque screwdriver. Loose connections cause high resistance, which melts terminal blocks under heavy generator loads and creates a severe fire risk.
Circuit Amperage | Minimum Wire Gauge (Copper) | Typical Application |
|---|---|---|
20 Amps | 12 AWG | Small portable generators |
30 Amps | 10 AWG | Mid-size inverter generators |
50 Amps | 6 AWG | Large standby generators |
100 Amps | 2 AWG | Whole-home backup systems |
Hardware connections alone do not complete the integration. You must configure the software or firmware to manage the power flow.
Access the inverter's setup menu. Set the AC input current limit. If you have a 30-amp generator, set the input limit to 25 amps. This prevents the inverter from pulling the maximum load and stalling the generator. Next, configure the battery charging parameters. Input the maximum charge current calculated during the pre-installation evaluation.
For automated systems, set the generator start/stop voltage triggers. Configure the inverter to send the start signal when the battery bank drops to 20% state of charge. Send the stop signal when it reaches 90%. Leaving the top 10% for solar charging maximizes solar utilization and reduces generator run time.
Verify the installation before bringing the system online permanently.
Start the generator and let it warm up for five minutes.
Use a digital multimeter to verify voltage at the transfer switch or inverter input terminals.
Turn on the inverter and monitor its synchronization phase. You should hear the internal relays click as it accepts the generator power.
Simulate a grid failure or low-battery event. Watch the inverter's interface to confirm it is charging the batteries and passing power to the loads.
Perform a ground fault check to ensure no stray voltage exists on the equipment chassis.
Modular setups offer flexibility for users who do not require a fully hardwired home system. Connecting third-party solar panels to an all-in-one portable power station requires matching electrical specifications and using the correct adapters.
Users building modular setups often combine rigid roof-mounted panels or portable folding panels with commercial power stations. These all-in-one units contain the MPPT charge controller, inverter, and lithium battery in a single chassis. The primary technical challenge is delivering the raw solar DC power into the unit safely without exceeding input limits.
Every portable power station has a maximum DC input voltage limit. Exceeding this limit permanently destroys the internal MPPT charge controller.
Locate the Open Circuit Voltage (Voc) and Short Circuit Current (Isc) on the solar panel's specification sticker. The total Voc of your solar array must remain below the power station's maximum input voltage, even in freezing temperatures. Cold weather causes panel voltage to rise significantly. The total Isc should align with the unit's maximum input current. If the array produces more current than the unit can accept, the MPPT controller simply clips the excess power without sustaining damage. Exceeding voltage is fatal to the hardware.
Wiring panels in series increases the total voltage while keeping the current the same. Connect the positive lead of panel A to the negative lead of panel B. Series wiring is better for long cable runs because higher voltage reduces line loss. It allows the array to wake up the MPPT controller earlier in the morning.
Wiring panels in parallel increases the total current while keeping the voltage the same. Connect all positive leads together and all negative leads together using branch connectors. Parallel wiring performs better in partial shading conditions. If one panel is shaded, the others continue to produce full power.
Choose the configuration that maximizes your solar generator system input limits without exceeding the maximum voltage threshold.
Standard solar panels use MC4 connectors. Portable power stations use proprietary or specialized inputs like XT60, Anderson Powerpole, or DC7909. You need a transition adapter cable to bridge the gap.
Verifying polarity is the most critical field step. Match positive to positive (red to red) and negative to negative (black to black). Use a digital multimeter to test the polarity at the end of the adapter cable before plugging it into the power station. Reversing the polarity causes an immediate short circuit, potentially destroying the unit's input stage.
Integrating distinct power sources introduces significant safety and legal risks. Understanding the boundaries of your electrical skills and adhering to codes ensures a safe installation.
Plugging solar panels into a portable power station using adapter cables is perfectly safe for anyone. It involves low-voltage DC connections and plug-and-play components. Hardwiring a transfer switch to a main panel, installing subpanels, or integrating a stationary standby generator requires a licensed electrician. These tasks involve lethal AC voltages and require deep knowledge of local building codes.
Having two neutral-to-ground bonds in a single system creates dangerous parallel paths for neutral current to flow over the ground wires. This energizes the equipment chassis and creates a severe shock hazard.
Determine whether the generator should be configured as a separately derived system (floating neutral) or a non-separately derived system (bonded neutral). If your transfer switch switches the neutral wire, the generator must have its neutral bonded to the frame. If the transfer switch does not switch the neutral wire, you must remove the neutral bonding jumper inside the generator to create a floating neutral. Consult the generator manual for instructions on modifying the bond.
All hardwired integrations must comply with the National Electrical Code (NEC). Article 702 covers Optional Standby Systems, dictating the requirements for transfer equipment and wiring methods. Article 690 covers Solar Photovoltaic Systems, detailing rapid shutdown requirements and DC disconnects.
Use only UL-listed components. Unlisted transfer switches or cheap imported breakers fail under load and void your homeowner's insurance. Submit your wiring diagrams to the local Authority Having Jurisdiction (AHJ) to obtain the necessary permits before beginning construction.
Backfeeding occurs when generator power flows backward through the main panel, through the utility meter, and out onto the grid. This steps up the voltage through the neighborhood transformer, sending lethal power down lines that utility workers assume are dead.
Mechanical interlocks or approved transfer switches physically prevent the main utility breaker and the generator breaker from being turned on simultaneously. Bypassing these mechanisms using cords with male plugs on both ends is illegal, highly dangerous, and carries severe criminal liability.
Audit your current inverter specifications to confirm its maximum AC input and THD tolerance before purchasing a generator.
Calculate your peak continuous load requirements and battery charge rates to size the generator accurately.
Inspect your main electrical panel to determine if an ATS, MTS, or mechanical interlock best fits your existing infrastructure.
Consult a licensed solar electrician to review your wiring diagrams and handle the hardwired AC connections.
A: No. Generators output AC power, while batteries require DC power to charge. Connecting them directly will destroy the batteries and create a severe fire hazard. A standalone battery charger or an inverter/charger is required to rectify the AC power into DC power safely before it reaches the battery bank.
A: Size the generator to handle your peak continuous AC load plus the maximum charge rate of your battery bank. A standard rule of thumb is to select a generator that provides 1.5 to 2 times the continuous rating of your solar inverter. This ensures it can charge batteries and run loads simultaneously without stalling.
A: Solar inverters reject dirty power to protect sensitive internal electronics. High Total Harmonic Distortion (THD) or fluctuating frequencies from conventional, non-inverter generators cause the solar inverter's internal protection circuits to disconnect. Using a pure sine wave inverter-generator usually resolves this issue and provides the clean waveform required.
A: Yes. A transfer switch or mechanical interlock is legally and functionally required for any hardwired system tied to a home’s electrical panel. It physically prevents the generator from backfeeding lethal voltage onto the utility grid or colliding with the solar inverter's output.
A: Yes. With a modern hybrid inverter, the system can utilize solar power and supplement any shortfalls with generator power simultaneously. This feature, often called load shaving or power assist, blends both power sources to meet heavy demands without overloading the generator.
A: If your transfer switch does not switch the neutral wire, your generator must have a floating neutral to prevent a double bond. You fix this by opening the generator's alternator cover and disconnecting the jumper wire that connects the neutral terminal to the ground lug. Always consult your specific generator's manual before modifying internal wiring.
