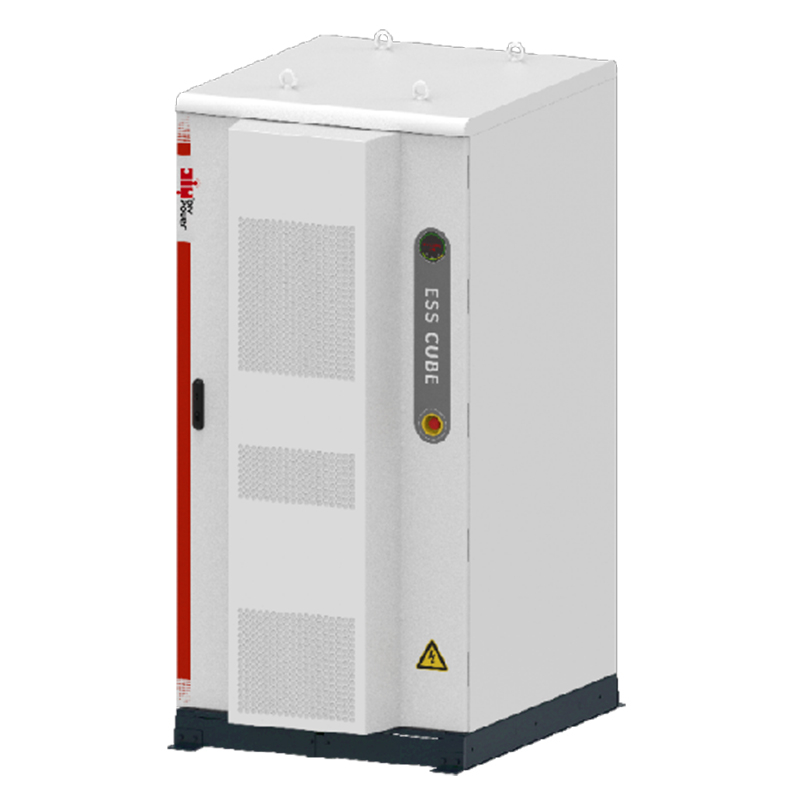

Energy Storage Cabinet for Industrial And Commercial Use - 506kWh

Performance features:

High integration, modular design, facilitating maintenance
On-demand deployment, supporting multi-cabinet parallel use
Supports off-grid operation, seamless switching between VF and PQ
Multiple electrical protections, active warning, active protection
Supports IoT and cloud platform
Downline design

Model:
DIY-F506
Brand:
DIY POWER

Size:	150013602400 mm
Availability:

Quantity:



Inquire Add to Basket

Commercial Energy Storage Cabinet All-in-One BESS Cabinet Outdoor Lithium Battery Cabinet Scalable Energy Storage System Industrial Battery Energy Storage System Liquid Cooled Energy Storage Cabinet Grid-Tied Energy Storage Solutions Prefabricated Energy Storage Container Smart BMS Energy Storage Unit Turnkey Energy Storage Project

Product Description

Technical Specifications

Catalog

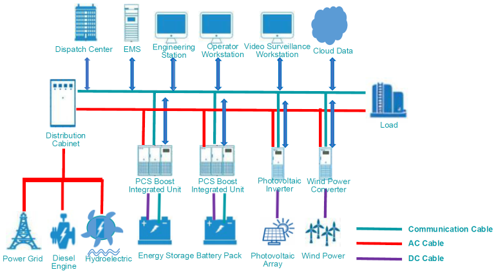

Large-Scale Microgrid ESS

Solution Features

Multiple Operating Modes for Free Switching, Quick and Simple Off-grid Switching
Comprehensive Cloud Monitoring, Rapid Fault Alarms
Good Real-time Communication, High System Dynamic Reliability

Application Value

•Improve Power Quality, Ensure Supply Stability

•Increase Renewable Energy Utilization Rate, High System Efficiency

•Enhance Grid Flexibility and Energy Security

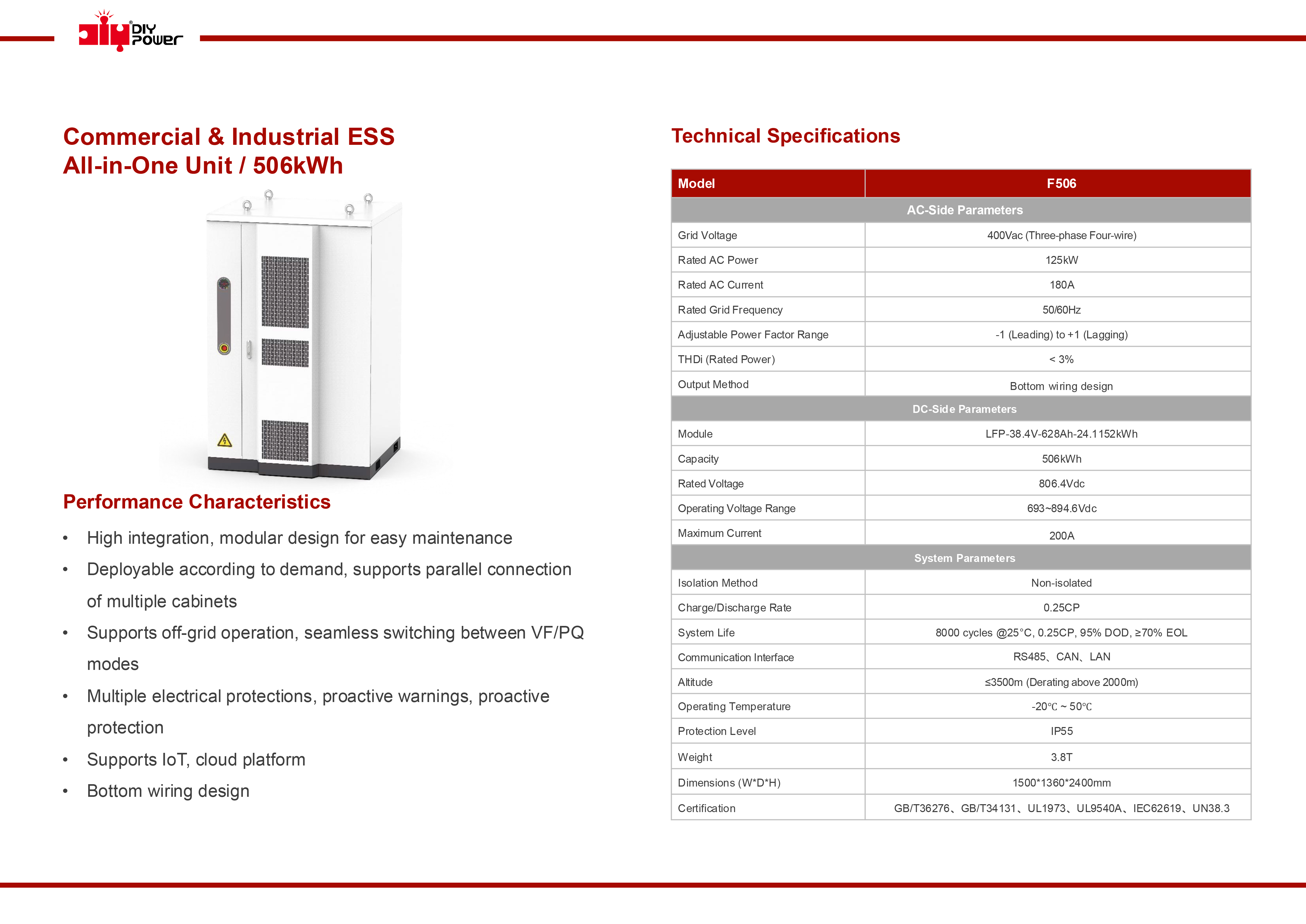

ESS Products F506

DC-Side Parameters

Model

DIY-F506

Grid Voltage

400Vac (3 Phase 4 Wire)

Rated AC Power

125kW

Rated AC Current

50Hz

60Hz

Rated Grid Frequency

50Hz

60Hz

Adjustable P.F. Range

-1 (Leading) to +1(Lagging)

THDi (Rated Power)

<3%

Output Method

Bottom Wiring Design

Module

LFP-38.4V-628Ah-24.1152kWh

Capacity

506kWh

Rated Voltage

806.4V dc

Operating Voltage Range

693~894.6V dc

Maximum Current

200A

System Parameters

Isolation Method

Non-isolated

Charge / Discharge Rate

0.25CP

System Life

8000 cycles @25℃

95% DOD

≥70%EOL

Communication Interface

RS485

CAN

LAN

Altitude

≤3500m (Derating above 2000m)

Operating Temperature

-20℃ ~ 50℃

Protection Level

IP55

Weight

3.8T

Dimensions (W*D*H)

1500 * 1360 * 2400 mm

Certification

UL1973

UL9540A

IEC62619

UN38.3

taiyangneng.pdf

Product Description

Technical Specifications

Catalog

Related Products

High-Rate Frequency Regulation - 1C Energy Storage System

Containerized ESS (Energy Storage System) - Air Cooling

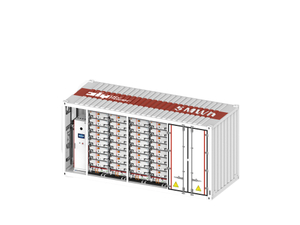

Containerized ESS (Energy Storage System) - Liquid Cooling
