Reliable auxiliary power dictates vessel safety, navigation, and operational continuity across commercial and recreational maritime environments. Selecting a marine power system based on superficial metrics leads to catastrophic system failures at sea. Undersizing causes breaker trips and motor burnout during peak loads. Oversizing leads to wet stacking, severe carbon buildup, and wasted fuel. Furthermore, marine environments introduce extreme spatial, acoustic, and corrosive constraints completely absent in land-based applications.

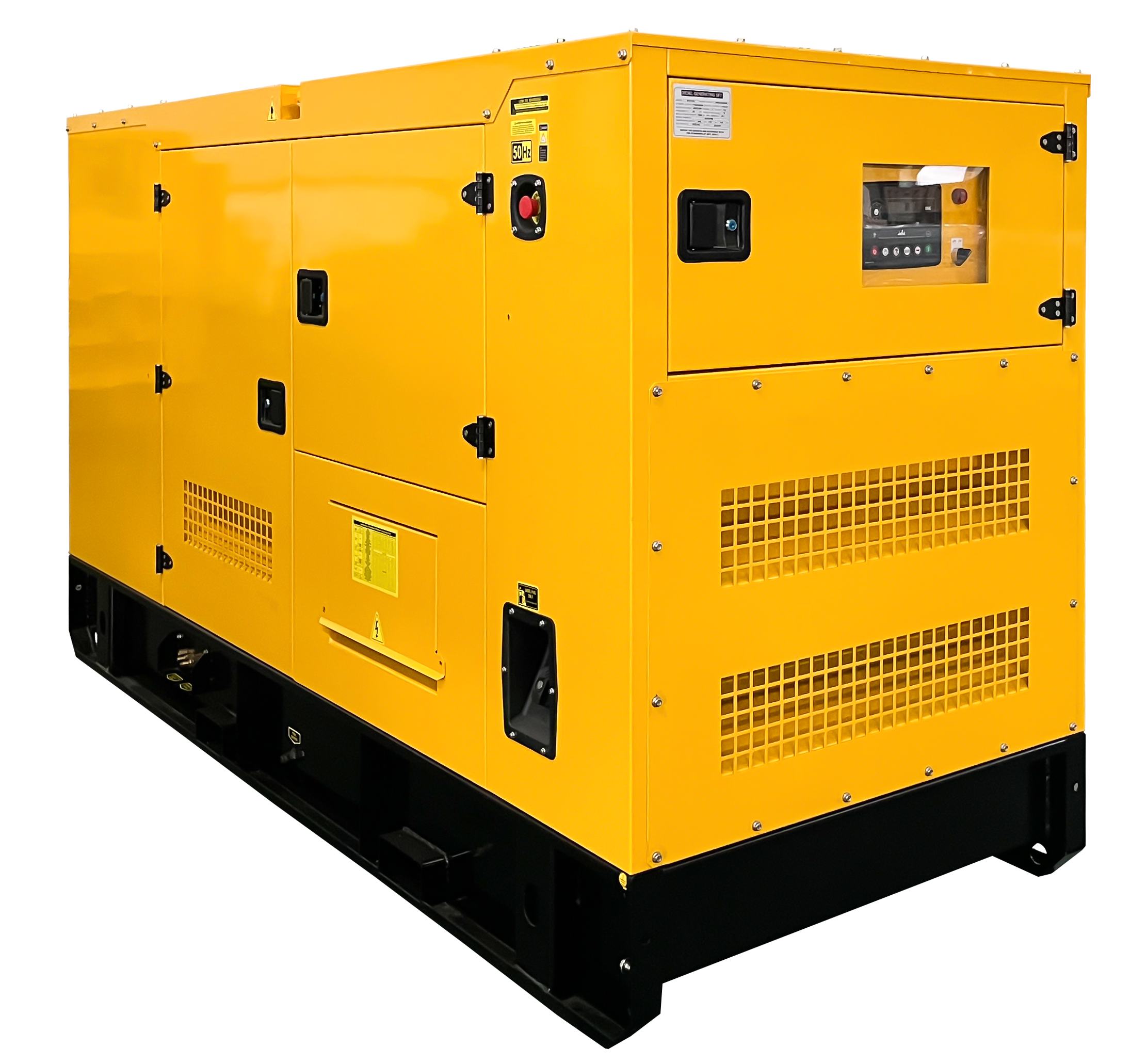

Navigating manufacturer spec sheets requires aligning raw technical data with specific vessel load profiles. You cannot guess capacity based on vessel length. This guide breaks down the technical specifications of a marine generator set. We provide a rigorous framework to evaluate power output, efficiency, compliance, and lifecycle metrics for your next procurement decision.
Evaluating power output requires a strict understanding of the difference between active power and apparent power. Active power, measured in kilowatts (kW), represents the actual mechanical work performed by the system to run appliances, motors, and electronics. Apparent power, measured in kilovolt-amperes (kVA), represents the total power drawn from the system. This includes the reactive power required to magnetize inductive loads like electric motors and transformers. The ratio between these two metrics is the power factor. For standard three-phase systems, the power factor is typically 0.8. You calculate active power by multiplying the kVA by the power factor.
Market ranges vary heavily based on the vessel's operational profile. Compact standard models designed for recreational vessels generally span from 3.5 kW to 195 kW. These units handle hotel loads, air conditioning, and basic navigation equipment on yachts and sportfishers. Heavy-duty commercial units operate in an entirely different tier, typically ranging from 74 kW up to 1200+ kW. When a vessel requires power for massive offshore drilling equipment, heavy lift cranes, or extensive refrigeration holds, manufacturers engineer custom configurations. These setups parallel multiple high-output units to meet massive electrical demands while providing redundancy.
Manufacturers assign specific ratings to generators based on their intended duty cycle and thermal limits. Prime Power ratings designate units engineered for continuous operation at variable loads over an unlimited number of hours per year. These serve as the primary source of ship service power. They feature robust cooling systems, oversized oil sumps, and heavy-duty alternators designed to withstand relentless daily use without overheating.
Emergency or Standby Power ratings apply to units designed to provide immediate, temporary power during main system failures. These units sit idle for long periods but must activate instantly during a blackout. Emergency units face strict specifications for rapid load acceptance. Regulatory bodies require them to take a 100% block load within seconds to restore critical steering, navigation, and fire-suppression systems. You cannot use a standby-rated unit for continuous prime power. Doing so pushes the engine past its thermal limits, voids the warranty, and guarantees premature failure.
You must conduct a comprehensive load analysis before reviewing any manufacturer specifications. The standard engineering rule requires factoring the continuous running power alongside the high inrush currents generated by inductive loads. Electric motors, HVAC compressors, and watermakers draw massive amounts of current during startup, often three to five times their running current.
Follow this standard procedure to calculate your required capacity:
Consider a concrete sizing example. Suppose a vessel has a continuous running requirement of 38 kW. The largest inductive motor draws 10 kW while running but requires a 1.5x multiplier to start, meaning it needs 15 kW to spool up. Your peak starting load becomes 53 kW (38 kW base + 15 kW transient). Apply the 1.25 safety margin formula to this peak figure (53 kW × 1.25). You find a minimum required capacity of 66.25 kW. You would round up and specify a 70 kW unit. This headroom prevents voltage dips during motor starts. However, you must avoid oversizing too much. Continuous operation below 30% of the maximum rated load causes wet stacking.
| Equipment Type | Typical Running Load | Starting Multiplier (Inrush Current) |
|---|---|---|
| HVAC Compressor | 3 kW - 5 kW | 3.0x - 4.0x |
| Watermaker Pump | 2 kW - 4 kW | 2.5x - 3.5x |
| Bow Thruster | 10 kW - 25 kW | 3.0x - 5.0x |
| Anchor Windlass | 4 kW - 8 kW | 2.0x - 3.0x |
Phase selection directly impacts electrical efficiency, wiring complexity, and equipment compatibility. Single-phase setups (120V/240V) remain the standard for recreational boats. They easily power standard onboard appliances, lighting circuits, and small air conditioning units. The wiring is straightforward, and load balancing requires minimal engineering. However, single-phase motors require starting capacitors, which are prone to failure in hot engine rooms.
Commercial vessels require three-phase setups (208V/400V/480V). These systems deliver power continuously across three alternating currents, making them ideal for heavy machinery, bow thrusters, and large hydraulic pumps. Three-phase motors offer distinct advantages. They are highly efficient, physically compact, and less expensive to maintain because they lack starting capacitors. The primary trade-off involves load distribution. Marine electricians must carefully balance the electrical draw across all three phases. Unbalanced loads cause the alternator to overheat and create severe voltage instability across the vessel.
Operating speed serves as a primary indicator of a unit's lifespan, fuel efficiency, and acoustic profile. Low-speed units operate at 1500 RPM for 50Hz markets or 1800 RPM for 60Hz markets. These 4-pole generators feature a heavier footprint and larger engine blocks. Because the pistons travel at a lower velocity, they generate less internal friction. They consume less fuel per kilowatt produced, generate a reduced acoustic signature, and maximize longevity. They are the absolute standard for continuous prime power applications on commercial vessels.
High-speed units operate at 3000 RPM (50Hz) or 3600 RPM (60Hz). These 2-pole generators prioritize a high power-to-weight ratio. They pack significant output into a compact footprint, making them ideal for tight engine rooms on fast planing yachts where weight dictates vessel speed. However, the increased rotational speed results in shorter lifespans, higher maintenance frequencies, and elevated noise levels. The internal components wear out faster due to the high piston speeds.
Marine engines cannot rely on traditional air cooling due to enclosed engine rooms and high ambient temperatures. Heat exchanger cooling represents the most common marine specification. This closed-loop system circulates freshwater and antifreeze through the engine block. A raw water pump draws seawater through a heat exchanger to cool the freshwater before ejecting the seawater overboard with the exhaust. Specifications must detail the raw water pump capacities to ensure adequate flow. Manufacturers must specify cupro-nickel materials for the heat exchanger core. Cupro-nickel resists the aggressive galvanic corrosion caused by hot, flowing seawater far better than standard brass or aluminum.
Keel cooling offers an alternative for vessels operating in shallow, debris-filled, or icy waters. This closed-loop system circulates engine coolant through pipes attached to the exterior of the hull, using the surrounding seawater to absorb the heat. It completely eliminates the need for a raw water pump, internal heat exchanger, and seawater strainers. This removes a major point of failure, but requires drydocking the vessel if the external cooling pipes sustain damage.
| Cooling Method | Mechanism | Primary Advantage | Main Drawback |
|---|---|---|---|
| Heat Exchanger | Raw water cools internal freshwater loop | Compact footprint, easy internal inspection | Vulnerable to raw water debris and marine growth |
| Keel Cooling | Coolant circulates through hull-mounted pipes | Zero raw water enters the vessel | Requires drydock for external pipe maintenance |
The alternator converts mechanical energy into electrical power. Marine-grade alternator specifications must account for harsh, saline environments that destroy standard land-based equipment. Insulation Class is a critical metric. Class H insulation is the marine standard, offering high thermal tolerance to withstand internal temperatures up to 180°C without degrading. Temperature Rise limits dictate how hot the alternator can get above ambient engine room temperatures at full load. Lower temperature rise specifications indicate a more robust, oversized alternator.
Ingress Protection (IP) ratings define the unit's resistance to solids and moisture. IP23 protects against solid objects larger than 12mm and water spraying at angles up to 60 degrees. IP44 offers protection against splashing water from all directions, necessary for exposed installations or wet engine rooms. High-humidity environments mandate the inclusion of anti-condensation heaters. These small heating elements activate when the engine shuts down, keeping the alternator windings warm and preventing moisture buildup. Epoxy coatings on the windings provide a final barrier against corrosive salt air, preventing salt bridging that leads to short circuits.
Evaluating efficiency requires analyzing manufacturer fuel consumption curves rather than relying on a single peak number. Manufacturers typically chart fuel data at 25%, 50%, 75%, and 100% load increments. A unit that appears highly efficient at 100% load might perform poorly at the 50% load where it spends most of its operational life. You must match the engine's peak efficiency window with your vessel's primary load profile.
To compare different models accurately, calculate the specific fuel consumption (SFC). SFC measures the grams of fuel consumed per kilowatt-hour of energy produced (g/kWh). A lower g/kWh indicates a more efficient engine. You must also account for fuel density variations, as temperature and fuel grade affect the actual volume consumed. When planning long passages, engineers use these curves to calculate exact fuel burn rates, ensuring the vessel carries adequate reserves.
Fuel injection technology dictates performance, emissions, and maintenance requirements. Mechanical fuel injection relies on camshaft-driven pumps. These systems feature simpler maintenance and a high tolerance for poor fuel quality or water contamination. Mechanics can often service them at sea with basic hand tools. However, they are less efficient, produce higher emissions, and offer slower response times to sudden load changes.
High-Pressure Common Rail (HPCR) systems represent the modern standard for efficiency and emissions compliance. HPCR uses an electronic control unit to deliver fuel at extreme pressures, regardless of engine speed. This results in superior fuel economy, significantly lower emissions, and rapid load response. The downside involves complexity and fragility. HPCR systems require pristine, highly filtered fuel. Even microscopic water droplets or debris will destroy the high-pressure injectors. Troubleshooting requires proprietary electronic diagnostic software, making at-sea repairs difficult.
Engine room dimensions strictly dictate the maximum allowable envelope (Length x Width x Height) for new equipment. You must measure the physical space, including the dimensions of the deck hatches, and compare it against the manufacturer's dimensional drawings. The dry weight of the unit impacts vessel trim, structural mounting requirements, and stringer width. High power-to-weight ratios benefit fast vessels where every kilogram affects speed and fuel burn.

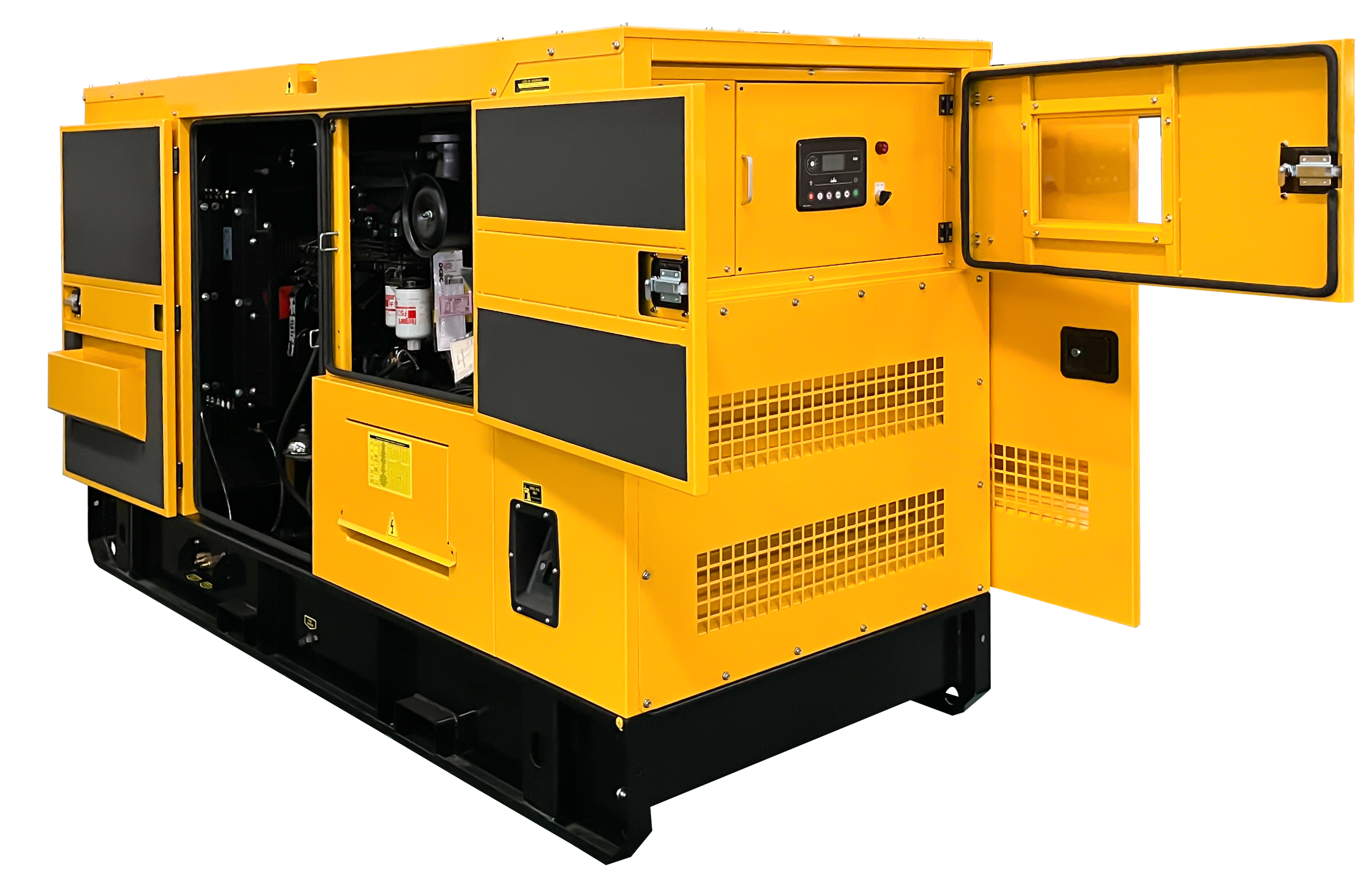

Spatial specifications must account for service access points. A compact unit loses its appeal if mechanics cannot reach the service panels. Specifications must guarantee adequate clearance to change oil filters, inspect drive belts, and access the raw water pump impeller. Failure to plan for service clearance results in engines that must be unbolted and moved simply to perform routine maintenance. You must also ensure adequate overhead clearance for lifting eyes during major overhauls.
Acoustic comfort is vital, especially on passenger vessels and yachts. Manufacturers measure acoustic specifications in decibels (dB(A)), typically recorded at a distance of 1 meter or 7 meters from the unit. A reading of 65 dB(A) at 7 meters is standard for quiet operation, equivalent to normal conversation.
To achieve these ratings, manufacturers utilize specialized sound enclosures. Evaluate the structural specifications of these sound shields. Premium shields use marine-grade aluminum to resist corrosion and feature high-density acoustic foam to absorb airborne noise. Structure-borne noise requires different mitigation. Specifications should detail the use of specialized elastomeric isolation mounts. These mounts sit between the engine base and the vessel's stringers, dampening structural vibrations before they transfer into the hull and resonate through the living quarters.
Legal operation requires strict adherence to environmental regulations. Genset specifications must explicitly state their compliance levels based on your operational waters. Vessels operating in US waters must meet EPA Tier 3 or Tier 4 standards, depending on engine size. International waters fall under IMO Tier II or Tier III regulations. European inland waterways require EU Stage V compliance.
Meeting the stringent emission caps of EPA Tier 4 and IMO Tier III often requires advanced aftertreatment systems. Specifications may include Selective Catalytic Reduction (SCR) systems, which inject urea into the exhaust to neutralize nitrogen oxides (NOx). Other systems utilize Diesel Particulate Filters (DPF) to trap and burn off soot. You must allocate space, weight, and maintenance budgets for these bulky aftertreatment components. An SCR system can be as large as the engine itself, drastically altering engine room layouts.
| Standard | Jurisdiction | Primary Requirement | Common Technology Used |
|---|---|---|---|
| EPA Tier 3 | US Waters (Smaller engines) | Moderate NOx reduction | Internal engine modifications |
| EPA Tier 4 | US Waters (Larger engines) | Severe NOx and PM reduction | SCR and DPF aftertreatment |
| IMO Tier III | International Emission Control Areas | Strict NOx limits | SCR systems |
Time Between Overhauls (TBO) serves as a primary metric for long-term operational reliability and maintenance scheduling. TBO indicates the manufacturer's estimated running hours before the engine requires a complete teardown and rebuild. This metric reflects the robustness of the internal components, including bearings, piston rings, and cylinder liners.
Light-duty, high-speed units may specify TBOs around 5,000 to 10,000 hours. Premium heavy-duty commercial units operating at low speeds specify TBOs ranging from 20,000 up to 42,000 hours. Achieving these maximum lifespans requires optimal load management, rigorous adherence to oil change intervals, and high-quality fuel filtration. Running an engine consistently outside its optimal load profile will cut the TBO in half.
Commercial buyers must verify type-approval specifications from recognized marine classification societies. Bodies like the American Bureau of Shipping (ABS), Det Norske Veritas (DNV), or Lloyd’s Register test and certify equipment for maritime safety. A type-approved unit guarantees that the design, materials, and manufacturing processes meet rigorous international standards.
These approvals are not optional for commercial operations. Insurance companies require them to underwrite the vessel. Port state control inspectors verify these certificates during routine boarding. Specifying non-approved equipment for a classed vessel results in failed inspections, voided insurance policies, and grounded operations. The survey process for these approvals involves rigorous testing of the engine's safety shutdowns, material composition, and structural integrity.
Operating a large diesel engine at low loads presents a severe mechanical risk known as wet stacking. When an engine runs below its designed operating temperature, unburned fuel and soot escape into the exhaust system. This mixture forms a thick, dark substance that glazes cylinder walls, fouls injectors, and drastically reduces engine efficiency. Over time, wet stacking leads to premature engine failure and requires a costly rebuild.
You mitigate this risk through intelligent system design. Instead of installing one massive unit to handle peak loads, specify a multi-genset synchronization system. Paralleling allows you to run smaller units independently for light hotel loads, keeping them fully loaded and hot. The system automatically synchronizes and brings additional units online only when heavy machinery activates. If paralleling is not an option, you must install a load bank to artificially load the engine and burn off the carbon buildup.
Modern vessels rely heavily on non-linear loads, including variable frequency drives (VFDs), LED lighting arrays, and advanced marine electronics. These devices draw current in abrupt pulses rather than smooth waves. This causes Total Harmonic Distortion (THD), which distorts the electrical waveform. High THD overheats alternators, trips breakers, and damages sensitive navigation equipment.
Mitigation requires strict alternator specifications. You must look for units that guarantee a THD of less than 5% under full load. Utilizing Permanent Magnet Generators (PMG) provides cleaner voltage regulation. PMG systems isolate the automatic voltage regulator (AVR) from the main power output. This ensures that sudden load changes and non-linear draws do not corrupt the power supply to critical vessel systems.
A: Sum your total continuous running power and add the peak starting power required by your largest inductive loads, such as HVAC compressors or watermakers. Multiply that combined total by a 1.25 safety margin. This formula ensures you have adequate headroom to start heavy motors without causing system-wide voltage drops.
A: Prime power units are engineered for continuous operation at variable loads for an unlimited number of hours annually. Standby units are designed strictly for emergency use during main power failures. You cannot use a standby-rated unit for continuous ship service without risking severe engine damage and voiding the manufacturer warranty.
A: Wet stacking occurs when an engine runs at low loads and fails to reach its optimal operating temperature. Unburned fuel and soot glaze the cylinder walls and foul the exhaust system. This reduces efficiency, increases oil consumption, and eventually causes premature engine failure. You prevent this by maintaining adequate loads.
A: Overhaul intervals depend entirely on the engine's operating speed and duty cycle. High-speed, light-duty units generally require overhauls between 5,000 and 10,000 hours. Heavy-duty, low-speed commercial units can run between 20,000 and 42,000 hours before requiring a major teardown, provided they receive proper maintenance and clean fuel.
A: Recreational vessels with standard lighting and appliance loads typically use single-phase 120V/240V systems. Commercial vessels operating heavy machinery, large hydraulic pumps, and bow thrusters require three-phase 208V/400V/480V systems. Three-phase power offers smoother delivery, greater motor efficiency, and eliminates the need for failure-prone starting capacitors.
A: An IP44 rating indicates the alternator is protected against solid objects larger than 1mm and resistant to splashing water from all directions. This level of ingress protection is necessary for marine environments where high humidity, condensation, and accidental water exposure in the engine room can easily short out unprotected electrical windings.
